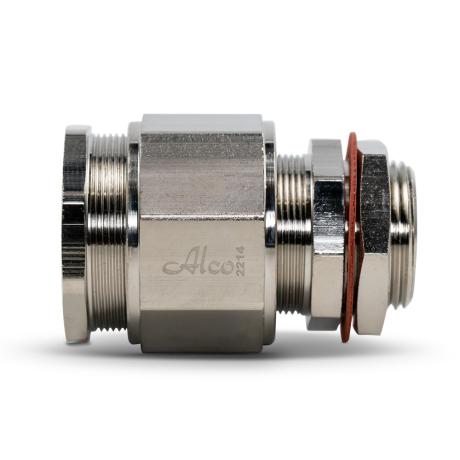

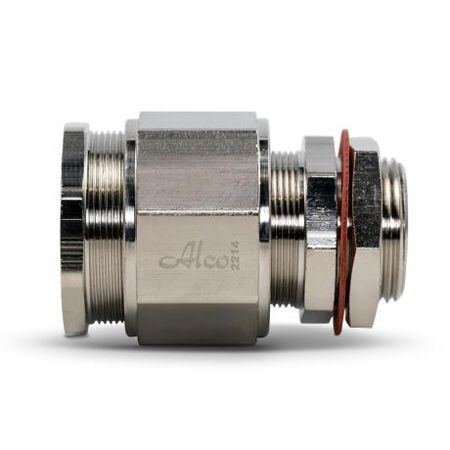

Cable Gland Brass EMC Weatherproof M25 | IP66/68 Rated | Durable Nickel Plated | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M25 is designed for reliable sealing in electrical installations, accommodating cable diameters from 17.5mm to 22mm. With an IP66/68 rating, it ensures protection against water and dust, making it ideal for both indoor and outdoor applications. Constructed from durable brass with nickel plating, this gland offers excellent corrosion resistance and includes a locknut for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M25 | IP66/68 Rated | Durable Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC25
Alternatively Known As: EMC Cable Gland M25, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 17.5-22.0mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m submersion)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 40mm x 40mm x 30mm
- Weight: 0.15 kg
Key Features
- Provides effective seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating, suitable for submersion up to 30m
- Constructed from durable brass with nickel plating for corrosion resistance
- Includes locknut as standard for secure installation
- Seal made from TPE for reliable temperature and environmental resistance
- Operates within temperature range of –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor electrical installations
- Industrial and commercial cable management
- EMC shielding for sensitive electronic equipment
- Weatherproof cable sealing in harsh environments
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M25 is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection and weatherproofing.
