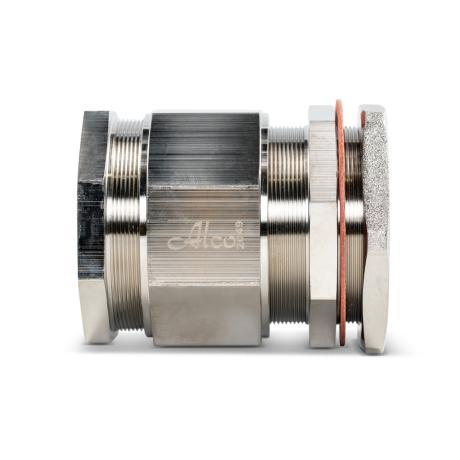

Cable Gland Brass EMC Weatherproof M75 | IP66/68 Rated | Nickel Plated Durability | @Each by Wattmaster
The Cable Gland Brass EMC Weatherproof M75 is designed for cable diameters of 62-69mm, providing robust EMC protection for both indoor and outdoor installations. With an IP66/68 rating for water ingress protection and durable nickel plating, it ensures reliable performance in industrial and commercial electrical applications. Ideal for environments requiring secure and weatherproof cable sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M75 | IP66/68 Rated | Nickel Plated Durability | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMC75C
Alternatively Known As: EMC Cable Gland M75, Brass Weatherproof Cable Gland, Nickel Plated Cable Gland, EMC Cable Connector
Technical Specifications
- Cable Diameter Range: 62-69mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Standards Compliance: AS1939-1990
- Locknut Supplied: Yes
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 0.5 kg
Key Features
- Provides seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Locknut supplied as standard for secure fitting
- Temperature range from –20°C to +80°C
- Made from brass with nickel plating for durability and corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and EMC compliance.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M75 for 62-69mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical applications requiring robust EMC protection.
