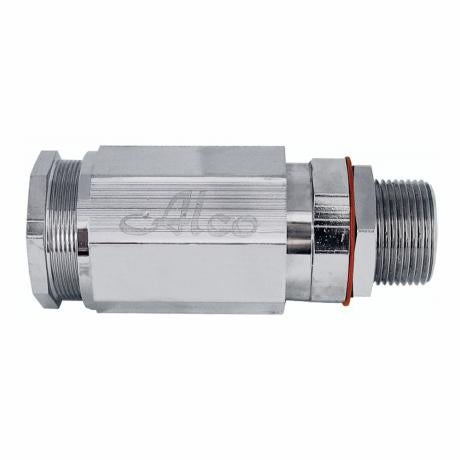

Cable Gland Brass Hazardous IP66/68 M32 | 24-28mm Cable Diameter | Secure Seal & Ex Protection | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M32 is designed for armoured cables with a diameter of 24-28mm, providing a secure seal and certified Ex protection for hazardous areas. Ideal for industrial and mining environments, this durable brass gland ensures high ingress protection against water and dust, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M32 | 24-28mm Cable Diameter | Secure Seal & Ex Protection | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW32A
Alternatively Known As: Hazardous Area Cable Gland, Ex Cable Gland, Armoured Cable Gland M32, Brass Cable Gland IP66/68
Technical Specifications
- Cable Diameter Range: 24.0-28.0 mm
- Ingress Protection: IP66/68 (30m underwater)
- Material: Brass
- Certification: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Protection: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.15 kg
Key Features
- Suitable for armoured cables with diameter 24-28mm
- Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC protection
- High ingress protection rating IP66/68 (30m underwater)
- Includes locknut as standard for secure installation
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician trained in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial and mining environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection prevents environmental contamination and cable damage
Warranty Information
Warranty terms as per Wattmaster standard product warranty, typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous IP66/68 M32 Armoured Cable Gland 24-28mm is available for immediate purchase, ideal for hazardous area cable sealing in industrial and mining applications.
