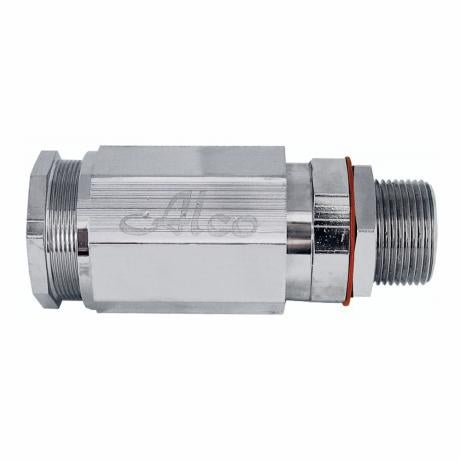

Cable Gland Brass Hazardous IP66/68 M90 | 73-82mm Cable Diameter | Ex db I/IIC & Ex eb I/IIC Certified | by Wattmaster
The Cable Gland Brass Hazardous IP66/68 M90 is designed for secure sealing of armoured cables with a diameter range of 73-82mm. Ideal for hazardous areas, it features IP66/68 ingress protection and is certified for explosive atmospheres, ensuring safety in industrial and mining environments. Built from durable brass, this gland includes a locknut for easy installation and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous IP66/68 M90 | 73-82mm Cable Diameter | Ex db I/IIC & Ex eb I/IIC Certified | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW90A
Alternatively Known As: Hazardous Area Cable Gland, Armoured Cable Gland M90, Brass Cable Gland IP66/68
Technical Specifications
- Cable Diameter Range: 73.0-82.0 mm
- Ingress Protection: IP66/68 (30m)
- Material: Brass
- Certifications: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Standards: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Ex Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Locknut: Supplied as standard
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 1.2 kg
Key Features
- Provides secure seal on cable sheath and clamps SWA
- Suitable for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC certifications
- IP66/68 rated for dust and water ingress protection up to 30m
- Includes locknut supplied as standard
- Certified to IEC Ex TSA 13.0001 and ANZ Ex 13.3000 standards
Professional Installation Requirements
- Installation must be performed by a qualified professional experienced in hazardous area electrical installations to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area cable sealing
- Armoured cable installations requiring Ex protection
- Industrial and mining environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Brass Hazardous IP66/68 M90 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area cable sealing applications in industrial and mining sectors.
