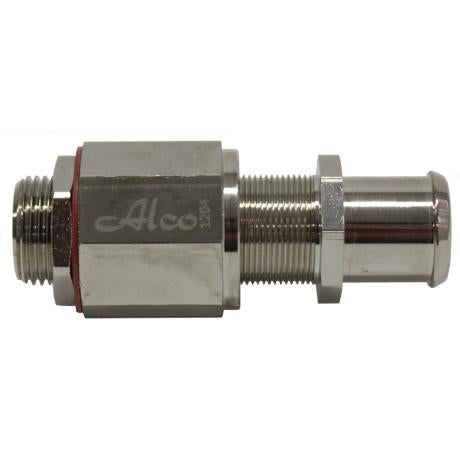

Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Flexible Hose Adaptor | by Wattmaster

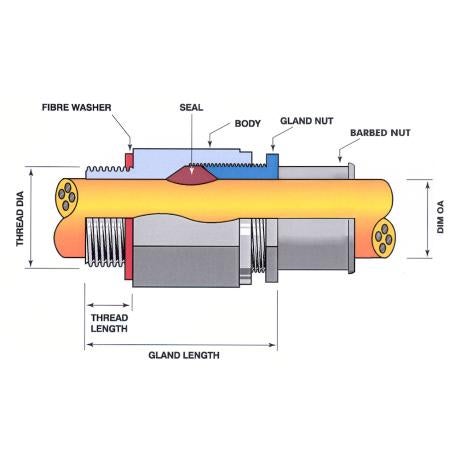

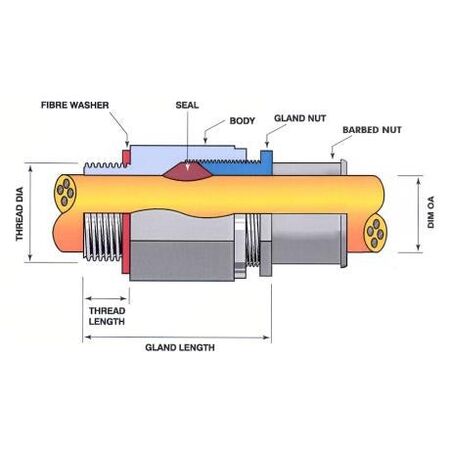

The Cable Gland Brass Hazardous Weatherproof M20 is designed for secure sealing of unarmoured cables with a diameter of 4-10mm. With an IP66/68 rating, it ensures protection against water and dust ingress, making it ideal for hazardous locations and corrosive environments. This durable brass construction includes a flexible hose adaptor, perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M20 | IP66/68 Rated | Flexible Hose Adaptor | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW20SB-H
Alternatively Known As: Brass Cable Gland M20, Hazardous Area Cable Gland, Weatherproof Cable Gland, Flexible Hose Adaptor Cable Gland
Technical Specifications
- Material: Brass
- Cable Diameter Compatibility: 4-10mm unarmoured cables
- Ingress Protection: IP66/68 (30m)
- Standards: IEC 60529, AS 1939-1990
- Includes locknut and adaptor nut for flexible hose
- Thread Size: M20
- Dimensions (H x L x W): 40mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Provides a secure seal on cable sheath
- Includes adaptor nut for flexible hose adaptor option
- Suitable for hazardous locations
- IP66/68 rated for water and dust ingress protection
- Locknut supplied as standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with hazardous area regulations and proper sealing.
Applications
- Indoor and outdoor corrosive environments
- Hazardous locations requiring secure cable sealing
- Industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous Weatherproof M20 Cable Gland with Flexible Hose Adaptor H20 is available for immediate purchase, ideal for use in hazardous and corrosive environments requiring secure cable sealing.
