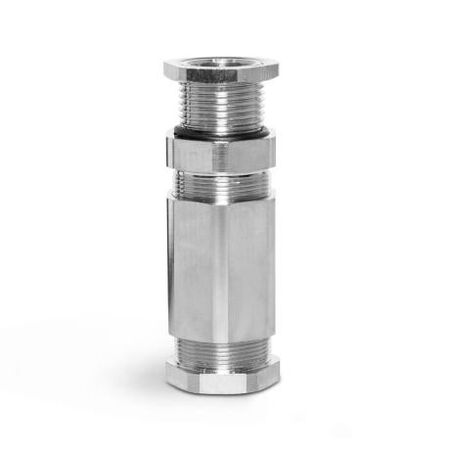

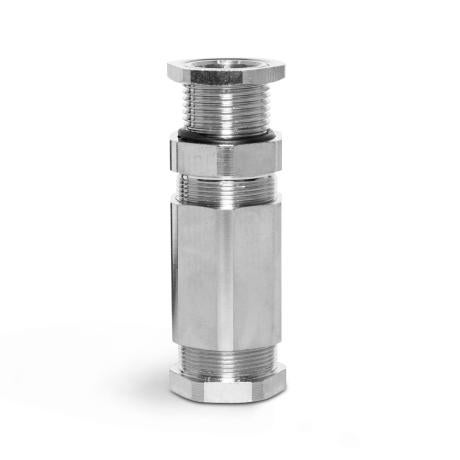

Cable Gland Brass Hazardous Weatherproof M25 | 18-27mm Cable Diameter | Type 2 Gland with Single Seal | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M25 is designed for armoured cables with a diameter range of 18-27mm, ensuring effective sealing in hazardous areas. Built from durable brass, this weatherproof gland is ideal for both indoor and outdoor applications, providing reliable protection for electrical wiring in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M25 | 18-27mm Cable Diameter | Type 2 Gland with Single Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBAB2M25L
Alternatively Known As: Brass Armoured Cable Gland M25, Hazardous Area Cable Gland, Weatherproof Cable Gland, SWA Cable Gland
Technical Specifications
- Cable Diameter Range: 18-27mm
- Thread Length: 16mm
- Material: Brass
- Type: Type 2 gland with single seal
- Suitable for armoured cables
- Includes locknut
- Weatherproof for hazardous areas
- Dimensions (H x L x W): 16mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Hazardous area weatherproof design
- Suitable for armoured cables with diameter 18-27mm
- Type 2 gland with single seal for effective sealing
- Provides seal on cable sheath and bedding
- Clamps steel wire armour (SWA) securely
- Locknut supplied for secure installation
- Suitable for both indoor and outdoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
- Industrial hazardous area cable installations
- Armoured cable sealing in indoor and outdoor environments
- Electrical wiring protection in hazardous locations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof design protects cables, reducing environmental contamination risks
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Weatherproof M25 Armoured Cable Gland is available for immediate purchase, ideal for industrial and hazardous area cable installations.
