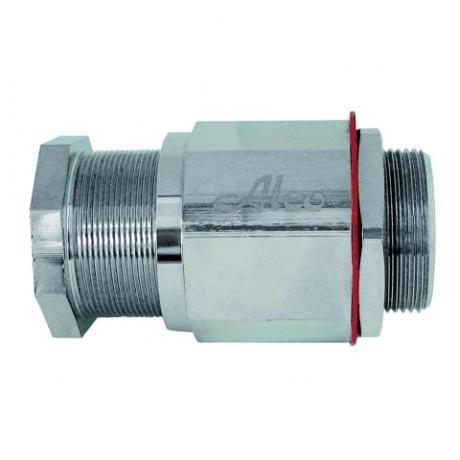

Cable Gland Brass Hazardous Weatherproof M40 | IP66/68 Rated | 25-31mm Cable Diameter | 15mm Thread Length | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M40 is designed for unarmoured cables with a diameter of 25-31mm, ensuring robust sealing in hazardous environments. With an IP66/68 rating, it provides excellent protection against dust and water ingress, making it ideal for both indoor and outdoor industrial electrical installations. Certified for hazardous areas, this durable brass gland includes a locknut for secure installation, ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M40 | IP66/68 Rated | 25-31mm Cable Diameter | 15mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW40
Alternatively Known As: Brass Hazardous Cable Gland M40, Weatherproof Cable Gland, Explosion Proof Cable Gland, Hazardous Area Cable Gland

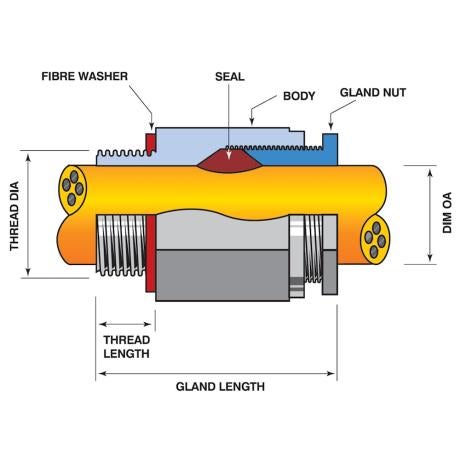

Technical Specifications
- Cable Diameter Range: 25-31mm
- Thread Length: 15mm
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Certification: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Supplied as standard
- Explosion Protection: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Suitable for indoor and outdoor use
- Dimensions (H x L x W): 40mm x 15mm x 40mm
- Weight: 0.15 kg
Key Features
- Suitable for unarmoured cables with diameter 25-31mm
- Brass construction for durability and corrosion resistance
- Weatherproof with IP66/68 rating (30m)
- Certified for hazardous areas: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Includes locknut for secure installation
- Complies with IEC/AS/NZS 60079 series and IEC 60529 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards and certifications.
Applications
- Indoor and outdoor hazardous area cable sealing
- Industrial electrical installations requiring weatherproof and explosion-proof cable glands
- Use in Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC classified environments
Standards & Compliance
- AS/NZS 60079 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable brass material reduces need for frequent replacements, minimizing waste
- Weatherproof design prevents ingress of water and dust, protecting electrical systems and reducing environmental hazards
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Weatherproof Cable Gland M40 is available for immediate purchase, ideal for hazardous area electrical installations requiring robust and certified cable sealing solutions.
