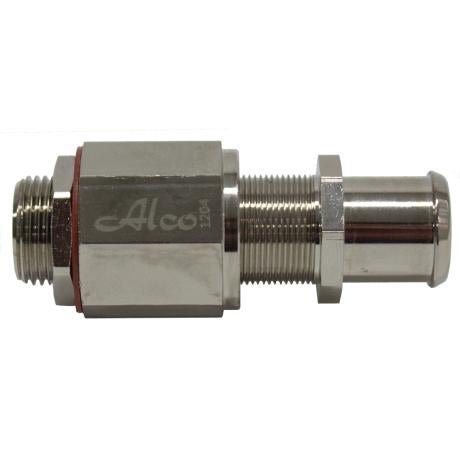

Cable Gland Brass Hazardous Weatherproof M40 | IP66/68 Rated | Includes Locknut & Flexible Hose Adaptor H40 | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M40 is designed for secure sealing of unarmoured cables with a diameter of 25-31mm. Certified for hazardous areas with IP66/68 ratings, it ensures protection against water and dust ingress. Ideal for both indoor and outdoor electrical installations, this gland includes a locknut and a flexible hose adaptor H40, making it perfect for various applications in hazardous zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M40 | IP66/68 Rated | Includes Locknut & Flexible Hose Adaptor H40 | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW40-H
Alternatively Known As: Hazardous Area Cable Gland M40, Brass Cable Gland Weatherproof, Ex Cable Gland M40, Hazardous Zone Cable Gland
Technical Specifications
- Cable Diameter Compatibility: 25-31mm
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Hazardous Area Certification: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Certificate Numbers: IEC Ex TSA 13.0002, ANZ Ex 13.3001
- Includes Locknut and Flexible Hose Adaptor H40
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- Suitable for indoor or outdoor use
- Provides a secure seal on cable sheath to prevent ingress
- Certified for hazardous areas with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- IP66/68 rated for water and dust ingress protection up to 30m depth
- Includes locknut as standard for secure fitting
- Flexible hose adaptor H40 included for conduit connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Indoor and outdoor electrical installations requiring weatherproof cable glands
- Use in Ex hazardous zones for electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof and corrosion-resistant design extends product life
- Supports safe electrical installations minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies; typically 12 months against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous Weatherproof Cable Gland M40 is available for immediate purchase, ideal for hazardous area electrical installations requiring robust and certified cable sealing solutions.
