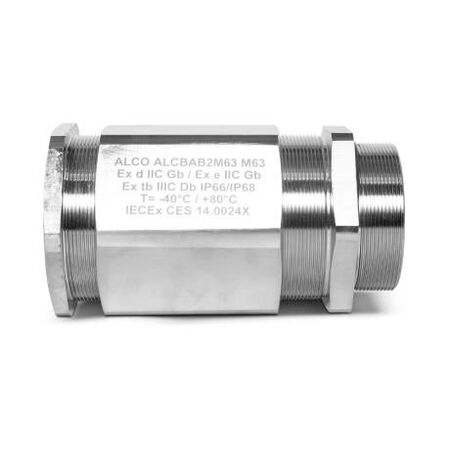

Cable Gland Brass Hazardous Weatherproof M63 | 42-56mm Cable Diameter | Type 2 Gland with Single Seal | by Wattmaster
The Cable Gland Brass Hazardous Weatherproof M63 is designed for armoured cables with a diameter range of 42-56mm. This Type 2 gland features a single seal that provides a secure fit and protects against environmental damage, making it ideal for both indoor and outdoor hazardous areas. With durable brass construction and a supplied locknut, it ensures reliable sealing and clamping of steel wire armour (SWA) in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Hazardous Weatherproof M63 | 42-56mm Cable Diameter | Type 2 Gland with Single Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBAB2M63
Alternatively Known As: Brass Armoured Cable Gland M63, Hazardous Area Cable Gland, Weatherproof Cable Gland, SWA Cable Gland M63
Technical Specifications
- Material: Brass
- Cable Diameter Range: 42-56mm
- Thread Length: 20mm
- Type: Type 2 gland with single seal
- Sealing: Provides seal on cable sheath and bedding
- Clamping: Clamps steel wire armour (SWA)
- Usage: Suitable for indoor and outdoor hazardous areas
- Locknut: Supplied
- Dimensions (H x L x W): 63mm x 40mm x 63mm
- Weight: 0.5 kg
Key Features
- Hazardous area weatherproof gland
- Suitable for armoured cable
- Type 2 gland with single seal
- Provides seal on cable sheath and bedding
- Clamps steel wire armour (SWA)
- Locknut supplied for secure fitting
- Suitable for indoor or outdoor use
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with hazardous area equipment is recommended to ensure compliance and safety.
Applications
- Industrial hazardous area cable installations
- Indoor and outdoor armoured cable sealing
- Electrical and instrumentation cable protection in hazardous environments
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof design prevents environmental damage and cable degradation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous Weatherproof M63 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area cable sealing and protection.
