Trade Discount 17%

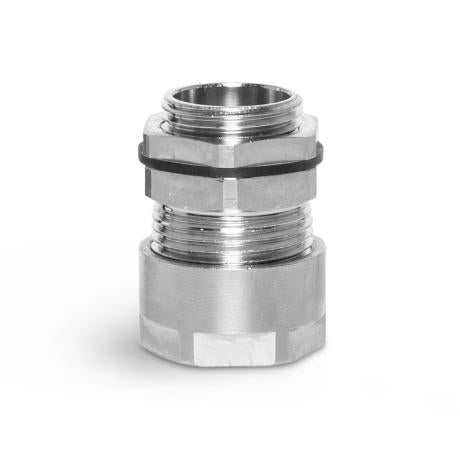

Cable Gland Brass Weatherproof M20 | 9-16mm Cable Compatibility | Locknut Included | by Wattmaster
The Cable Gland Brass Weatherproof M20 is designed for unarmoured cables with a diameter of 9-16mm, ensuring a secure and weatherproof seal for both indoor and outdoor installations. Made from durable brass, it features a locknut for secure fitting and operates within a wide temperature range of -40°C to +100°C, making it ideal for industrial and commercial electrical wiring protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M20 | 9-16mm Cable Compatibility | Locknut Included | by Wattmaster
Brand: Wattmaster
SKU: ALCAA20
Alternatively Known As: Brass Cable Gland M20, Weatherproof Cable Gland, Unarmoured Cable Gland, M20 Cable Gland
Technical Specifications
- Cable Size Compatibility: 9.0mm to 16.0mm diameter unarmoured cables
- Material: Brass
- Temperature Range: -40°C to +100°C
- Includes locknut for secure installation
- Weatherproof rating suitable for outdoor use
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Clamps and seals on the outer cable surface to prevent ingress
- Weatherproof design suitable for harsh environmental conditions
- Locknut supplied as standard for secure fitting
- Wide temperature range from -40°C to +100°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor cable installations requiring weatherproof sealing
- Electrical wiring protection in industrial and commercial environments
- Use with unarmoured cables ranging from 9mm to 16mm diameter
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces the need for frequent replacements, minimizing waste
- Weatherproof sealing helps protect electrical systems, reducing energy loss and hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M20 for unarmoured cables 9-16mm is available for immediate purchase, ideal for both indoor and outdoor electrical cable protection.
