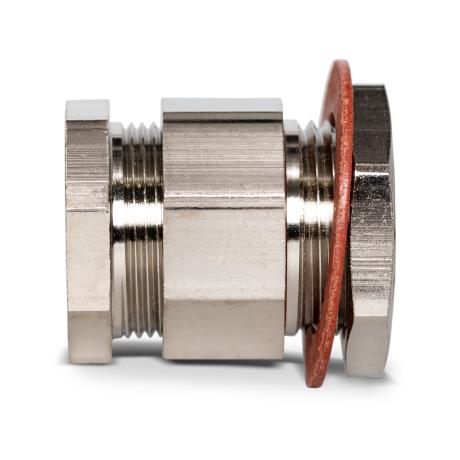

Cable Gland Brass Weatherproof M20 | IP66/68 Rated | 10-15mm Cable Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M20 is designed for unarmoured cables with a diameter of 10-15mm, ensuring a secure and weatherproof seal. With an IP66/68 rating, it provides excellent protection against water ingress, making it ideal for both indoor and outdoor electrical installations. Crafted from durable brass with nickel plating, this gland is built to withstand harsh conditions while maintaining compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M20 | IP66/68 Rated | 10-15mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUW20
Alternatively Known As: Brass Cable Gland M20, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Compatibility: 10-15mm
- Material: Brass with nickel plating
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 40mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Suitable for unarmoured cables with diameter 10-15mm
- Weatherproof design with IP66/68 rating (30m water ingress protection)
- Brass construction with nickel plating for corrosion resistance
- Includes locknut for secure installation
- TPE seal for effective cable sheath sealing
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing
- Electrical installations requiring weatherproof cable entry
- Industrial and commercial wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating reduce need for frequent replacements
- Weatherproof sealing prevents water ingress, reducing electrical faults and waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M20 for unarmoured cables 10-15mm is available for immediate purchase, ideal for secure and weatherproof cable installations in residential, commercial, and industrial settings.
