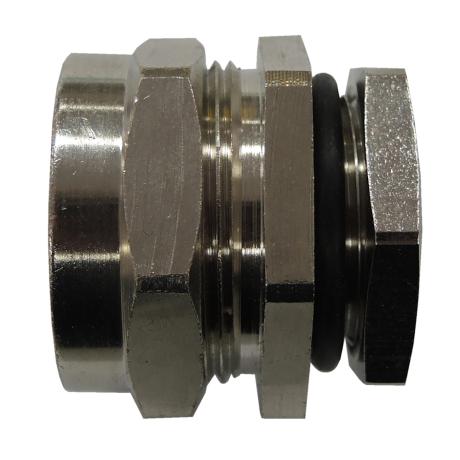

Cable Gland Brass Weatherproof M32 | IP66/68 Rated | 19-27mm Cable Diameter | by Wattmaster
The Cable Gland Brass Weatherproof M32 is designed for unarmoured cables with a diameter of 19-27mm, providing exceptional protection with an IP66/68 rating for water ingress up to 30m. Ideal for both indoor and outdoor installations, this durable brass gland ensures secure fitting and compliance with IEC62444 standards, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M32 | IP66/68 Rated | 19-27mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCUA32
Alternatively Known As: Brass Cable Gland M32, Weatherproof Cable Gland, Unarmoured Cable Gland, IP68 Cable Gland
Technical Specifications
- Cable Diameter Range: 19-27mm
- Material: Brass
- Protection Rating: IP66/68 (30m water ingress protection)
- Standards Compliance: IEC62444
- Anchorage Category: CAT B
- Impact Category: CAT 8
- Locknut: Supplied as standard
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.15 kg
Key Features
- Suitable for unarmoured cables with diameter 19-27mm
- Weatherproof design with IP66/68 rating for water ingress protection up to 30m
- Clamps and seals on the outer cable surface to ensure secure fitting
- Includes locknut as standard for easy installation
- Complies with IEC62444 standard
- Protection types Anchorage CAT B and Impact CAT 8 compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor cable installations
- Electrical wiring protection in industrial and commercial settings
- Weatherproof sealing for unarmoured cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Weatherproof sealing prevents environmental damage to cables, extending cable life
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M32 for unarmoured cables is available for immediate purchase, ideal for secure and weatherproof cable installations in industrial and commercial environments.
