Cable Gland Brass Weatherproof M75 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster

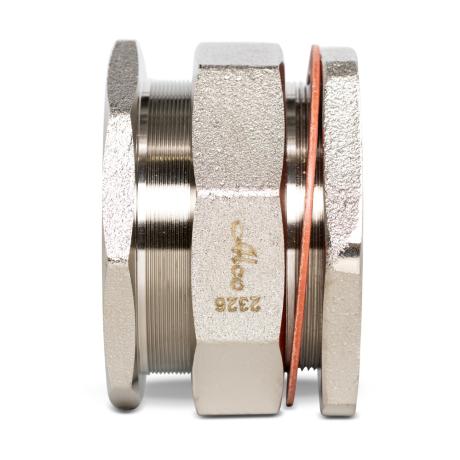

The Cable Gland Brass Weatherproof M75 is designed for unarmoured cables with a diameter of 51-65mm, providing a secure seal and exceptional weatherproofing with an IP66/68 rating. Ideal for both indoor and outdoor electrical installations, this durable gland features brass construction with nickel plating for corrosion resistance, ensuring long-lasting performance in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass Weatherproof M75 | IP66/68 Rated | Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCUW75
Alternatively Known As: Brass Cable Gland M75, Weatherproof Cable Gland, Unarmoured Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Cable Diameter Range: 51-65mm
- Material: Brass with nickel plating
- Seal Material: TPE
- Ingress Protection: IP66/68 (30m)
- Temperature Range: –20°C to +80°C
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Suitable for unarmoured cables with diameter 51-65mm
- Provides a secure seal on cable sheath
- Weatherproof with IP66/68 rating (30m water ingress protection)
- Brass construction with nickel plating for corrosion resistance
- Includes locknut as standard
- Temperature range from –20°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing
- Industrial and commercial electrical installations
- Weatherproof cable entry points
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents water ingress, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Weatherproof Cable Gland M75 is available for immediate purchase, ideal for securing and weatherproofing unarmoured cables in industrial and commercial electrical installations.
