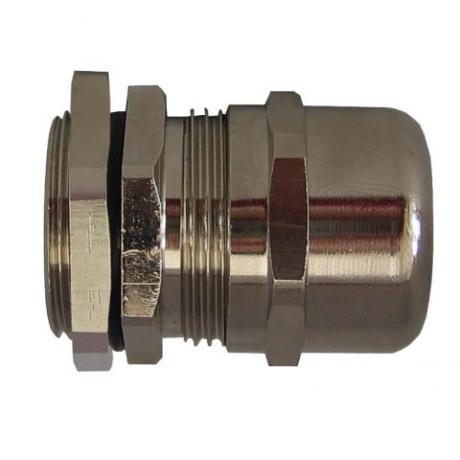

Cable Gland EMC Gen 4 Weatherproof M50 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
The Cable Gland EMC Gen 4 Weatherproof M50 is designed for reliable indoor and outdoor cable installations requiring EMC protection. With a cable diameter range of 30-38mm and IP66/68 ingress protection, it ensures a secure seal and effective grounding. Made from durable nickel-plated brass, this gland is perfect for industrial and commercial applications, providing long-lasting performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland EMC Gen 4 Weatherproof M50 | IP66/68 Ingress Protection | Nickel Plated Brass | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCEMCG450
Alternatively Known As: EMC Cable Gland M50, Weatherproof Cable Gland M50, Nickel Plated Brass Cable Gland, EMC Gen 4 Cable Gland
Technical Specifications
- Cable Diameter: 30-38mm
- Thread Length: 15mm
- Material: Brass, Nickel Plated
- Seal Material: Chloroprene
- Ingress Protection: IP66/68 (5 Bar)
- Temperature Range: –20°C to +100°C (Intermittent –40°C to +150°C)
- Standards: IEC/EN 62444, IEC 60529
- Locknut Supplied: Yes
- Range: EMC16-EMC63L
- Dimensions (H x L x W): 50mm x 60mm x 50mm
- Weight: 0.15 kg
Key Features
- Weatherproof design with IP66/68 (5 Bar) ingress protection
- Provides seal on cable sheath and ensures contact between screen and earth
- Suitable for cable diameters 30-38mm
- Material: Brass with nickel plating for corrosion resistance
- Includes locknut as standard
- Seal made of chloroprene for durability
- Wide temperature range from –20°C to +100°C (intermittent –40°C to +150°C)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing and screening
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Weatherproof and corrosion-resistant design extends product life
- Supports safe and efficient electrical installations reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Cable Gland EMC Gen 4 Weatherproof M50 is available for immediate purchase, ideal for industrial and commercial electrical cable installations requiring EMC protection.
