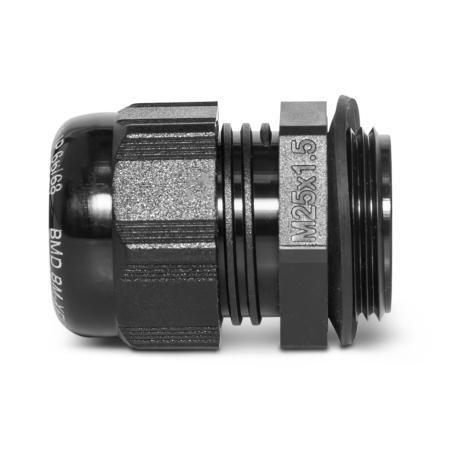

Cable Gland Nylon Hazardous M25 | 11-17mm Cable Diameter | 8mm Thread Length | by Wattmaster
The Cable Gland Nylon Hazardous M25 is designed for unarmoured cables with a diameter range of 11-17mm, featuring an 8mm thread length for secure installation. Ideal for industrial hazardous area applications, it ensures safety in explosive gas and dust environments, making it perfect for Group II and Group III installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon Hazardous M25 | 11-17mm Cable Diameter | 8mm Thread Length | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBUPM25S
Alternatively Known As: Nylon Hazardous Cable Gland M25, Ex Cable Gland M25, Polyamide Cable Gland for Hazardous Areas
Technical Specifications
- Material: Polyamide (Nylon)
- Cable Diameter Range: 11-17mm
- Thread Length: 8mm
- Type: Unarmoured cable gland
- Includes locknut for secure installation
- Suitable for Group II Gas Group IIC ZONE1/ZONE2
- Suitable for Group III Dust Group IIIC ZONE21/ZONE22
- Dimensions (H x L x W): 25mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Polyamide construction suitable for hazardous Ex applications
- Comes complete with locknut for secure fitting
- Designed for non-armoured cables with diameter 11-17mm
- Suitable for use in explosive gas and dust atmospheres
- Recommended use of locknuts and gaskets to maintain IP rating on rough surfaces or through holes
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area electrical installations to ensure compliance and safety.
Applications
- Industrial hazardous area cable installations
- Use in Group II Gas Group IIC ZONE1/ZONE2 environments
- Use in Group III Dust Group IIIC ZONE21/ZONE22 environments
- Non-armoured cable protection in hazardous locations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable polyamide material reduces need for frequent replacements
- Supports safe electrical installations in hazardous environments, preventing environmental hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Nylon Hazardous Cable Gland M25 is available for immediate purchase, ideal for industrial hazardous area cable installations.
