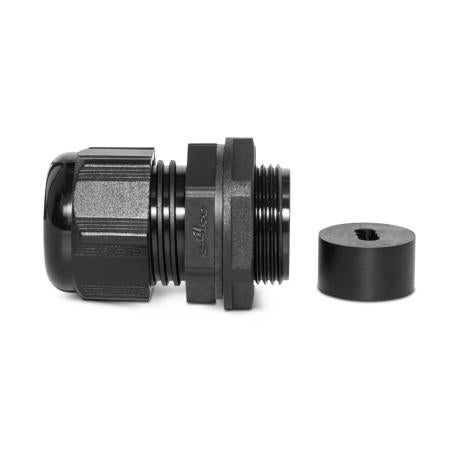

Cable Gland Nylon M25 for TPS Cable 1.5-2.5mm² | IP66/68 Rated | UV Protected | by Wattmaster
The Cable Gland Nylon M25 is designed for TPS cables sized 1.5-2.5mm², offering IP66/68 protection against dust and water ingress. Ideal for both indoor and outdoor electrical installations, this durable polyamide gland includes a locknut for secure installation, ensuring reliable performance in industrial and commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Nylon M25 for TPS Cable 1.5-2.5mm² | IP66/68 Rated | UV Protected | by Wattmaster
Brand: Wattmaster
SKU: ALCMG25-TPS-B
Alternatively Known As: Nylon Cable Gland M25, TPS Cable Gland, IP66 Cable Gland, Waterproof Cable Gland, Polyamide Cable Gland
Technical Specifications
- Cable Size Compatibility: 1.5-2.5mm² TPS cable
- Ingress Protection: IP66/68 (5 bar pressure tested)
- Material: Polyamide (nylon)
- Seal Material: Chloroprene
- Locknut: Included
- UV Protection: Yes
- Suitable for indoor and outdoor use
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Suitable for TPS cables sized 1.5-2.5mm²
- IP66/68 rated providing protection against dust and water ingress up to 5 bar pressure
- UV protected for outdoor durability
- Includes locknut for secure installation
- Made from durable polyamide material with chloroprene seal
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor electrical installations
- Sealing and securing TPS cables in industrial and commercial environments
- Use in electrical panels, junction boxes, and machinery requiring IP66/68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable UV resistant material extends product life reducing waste
- Seals cables to prevent ingress of dust and water, protecting electrical systems and reducing maintenance needs
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Nylon Cable Gland M25 for TPS Cable 1.5-2.5mm² IP66/68 with Locknut is available for immediate purchase, ideal for secure and weatherproof cable installations in residential, commercial, and industrial settings.
