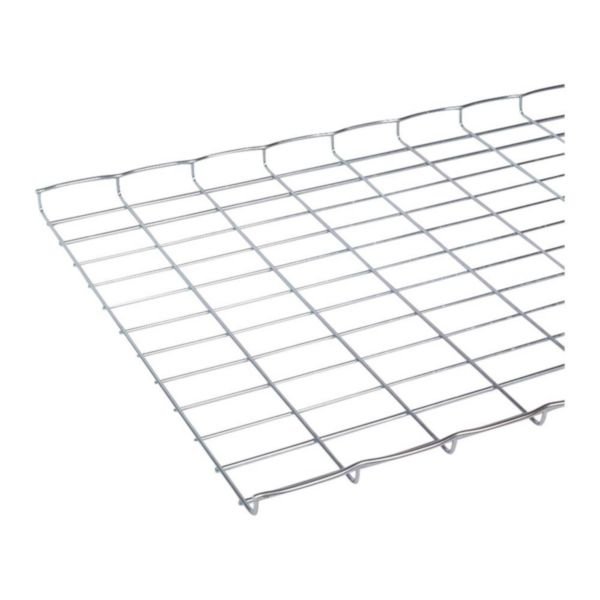

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Len of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and electro-zinc plated surface, it offers excellent corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and factories, this tray ensures safe and organized routing of electrical cables, making it a reliable choice for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Len of 1 | by Cablofil
Brand: Cablofil
SKU: CM000851
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 600 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 15933 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 2.93 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 600mm
- Weight: 8.78 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro-zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with structural and electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use where corrosion resistance is required
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency and waste
- Supports organized cable routing which can improve energy efficiency and reduce heat buildup
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 600mm x 30mm x 3m Length is available now for immediate purchase. Ideal for commercial and industrial cable management applications.
