Electro Zinc Steel Wire Cable Tray U-Shape Profile Galvanic Zinc Plated Variant-2 Cablofil

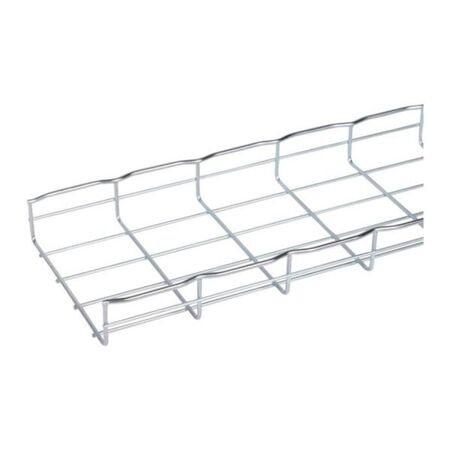

The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 10293 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Weight: 1.34 kg/m (approx. 4.02 kg for 3m length)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Integrated partition: None
- Model: Without connector
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 200mm
- Weight: 4.02 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Galvanic/electrolytic zinc plated surface protection for corrosion resistance
- Suitable for circuit integrity applications
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building standards and to maintain circuit integrity.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring circuit integrity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating provides long-lasting corrosion resistance, reducing the need for frequent replacements and waste
- Open wire mesh design allows natural ventilation, improving cable lifespan and reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 200mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
