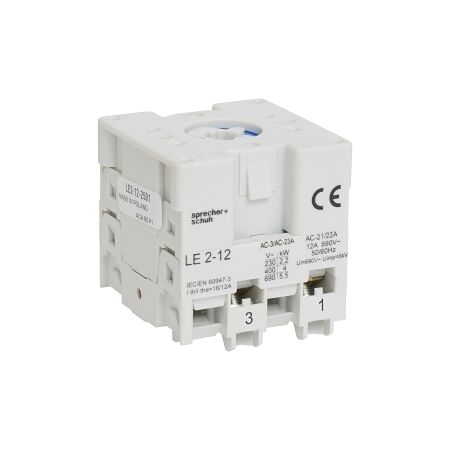

Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover 12A Panel Mount

Cam Switch 1 Pole Changeover | 12A 690V | Panel Mount by NHP

BRAND: NHP

SKU: LE2122501

$82.50 List price: $109.60

+ −

30 Days Return Delivery Options

Cam switch with 1 pole changeover design and 12A rating at 690V—ideal for industrial machinery control and commercial electrical panels. Built for durability, with front mounting and IP20 protection.

Description
Attachments

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover 12A Panel Mount

Brand: NHP

SKU: LE2122501

Alternatively Known As: Cam Switch, Changeover Switch, Panel Mount Switch

Technical Specifications

Rated operation current at AC 15 (230V): 5A
Rated operation current at AC 15 (400V): 3A
Rated operation current at AC 22A (690V): 12A
Rated operation current at AC 22A (220-500V): 12A
Rated operation current at AC 21A (690V): 12A
Rated operation current at AC 1 (690V): 12A
Thermal current (enclosed): 12A
Thermal current (open): 16A
Electrical connection type: Screw connection
Mounting method: Front mounting
Material housing: Plastic
Wire conductor size (rigid cable): 1-2.5 mm²
Wire conductor size (flex cable): 1-2.5 mm²
Degree of protection: IP20
Mechanical life: 1,000,000 cycles
Number of switch positions: 2
Operating temperature: -25 to 60 °C
Dimensions (H x L x W): 42mm x 44mm x 42mm
Weight: 0.5 kg

Key Features

1 Pole Changeover design for versatile switching applications.
Rated for 12A operation at 690V AC.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Machinery control and automation
Commercial: Electrical panels and switchboards

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Durable design ensures long service life, reducing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body is available now for immediate purchase, ideal for industrial and commercial electrical applications.

LE2122501-AU-Cam-Switch-Body-Datasheet.pdf (LE2122501-AU-Cam-Switch-Body-Datasheet.pdf, 363 Kb) [Download]
