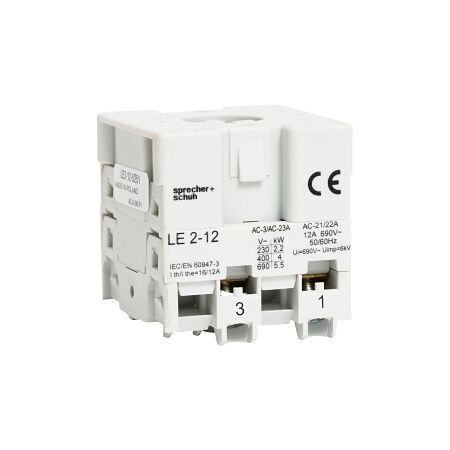

Cam Switch 2 Position with Off | 12A 690V | Panel Mount by NHP
Cam switch with 2 positions and off, rated for 12A at 690V—ideal for industrial machinery control and commercial equipment switching. Built for durability, with IP20 protection and easy panel mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 2 Position with Off 12A Panel Mount
Brand: NHP
SKU: LE2125251
Alternatively Known As: Cam Switch, L2 Switch Body, Panel Mount Switch
Technical Specifications
- Number of poles: 1
- Rated operation current at AC 15 230V: 5A
- Rated operation current at AC 15 400V: 3A
- Rated operation current at AC 22A 690V: 12A
- Rated operation current at AC 22A 220-500V: 12A
- Rated operation current at AC 21A 690V: 12A
- Rated operation current at AC 1 690V: 12A
- Thermal current enclosed: 12A
- Thermal current open: 16A
- Type of electrical connection: Screw connection
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 44mm x 42mm
- Weight: 0.5 kg
Key Features
- Rated for 12A operation at 690V AC.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 2 Position with Off 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
