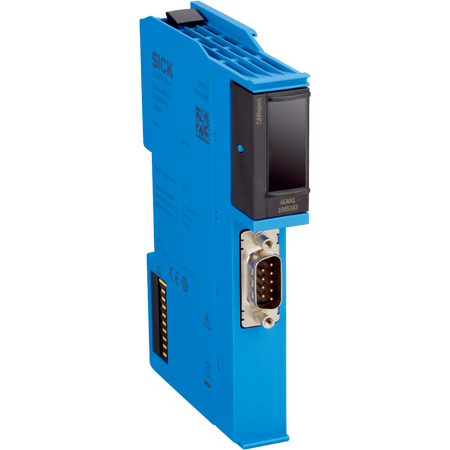

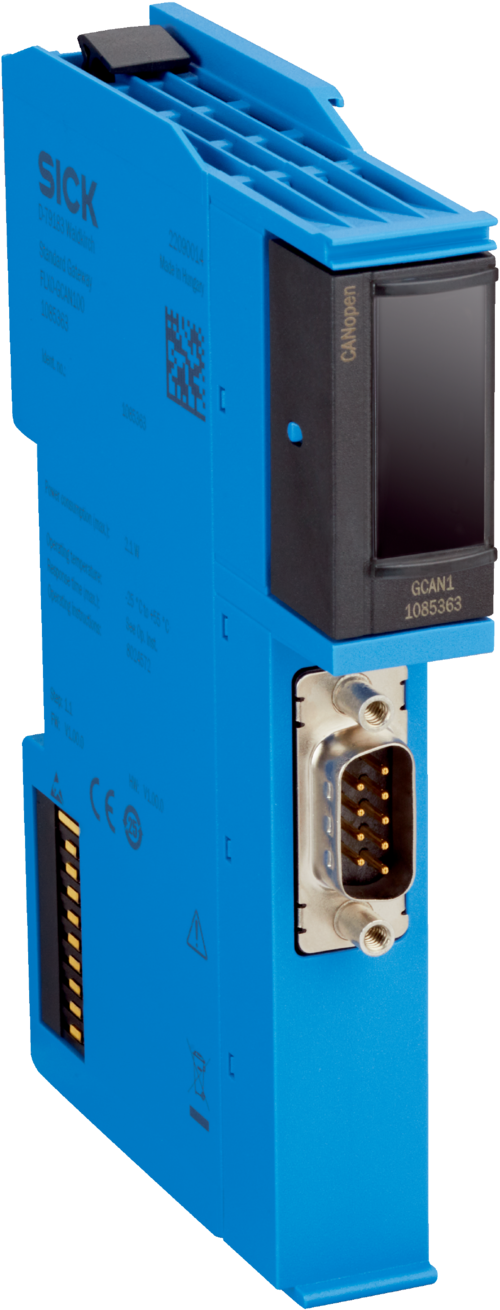

CANopen Gateway Module FLX0-GCAN100 Low Power Loss IP20 Enclosure SICK

BRAND: SICK
SKU: 1085363
$1,315.00 List price: $1,652.90
+ −
30 Days Return Electricians Unlock Trade Access
The CANopen Gateway Module FLX0-GCAN100 enables seamless data communication for safety controllers over CANopen networks.
Technical Specifications
  • Module Type: Gateway
  • Fieldbus: CANopen
  • Configuration Method: Via Safety Designer software and TFT display
  • Fieldbus Interface: Male D-Sub 9-pin connector
  • Protection Class: III (EN 61140)
  • Interference Resistance: EN 61000-6-2
  • Interference Emission: EN 61000-6-4
  • Voltage Supply: Via backplane bus
  • Power Loss: ≤ 2.1 W
  • Current Consumption: 85 mA
  • Contamination Rating: 2 (IEC 61010-1)
  • Control Device Type: Open device (IEC 61010-2-201)
  • Enclosure Rating: IP20 (EN 60529)
  • Operating Temperature: –25 °C to +55 °C
  • Storage Temperature: –25 °C to +70 °C
  • Humidity: ≤ 95%, Non-condensing
  • Vibration Resistance: 1 g, 5 Hz to 200 Hz (EN 60068-2-6)
  • Shock Resistance: 15 g, 11 ms (EN 60068-2-27)
  • Dimensions (H x L x W): 124.7mm x 85.5mm x 18mm
  • Weight: 0.105 kg
Key Features
  • Enables safety controller to send and receive data over CANopen network
  • Configuration via software (Safety Designer) and TFT display
  • Male D-Sub 9-pin connector for fieldbus interface
  • Low power loss of ≤ 2.1 W and current consumption of 85 mA
  • Mounting on standard 35 mm × 7.5 mm mounting rail (IEC 60715)
  • Robust mechanical design with IP20 enclosure rating
  • Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial safety and network communication systems to ensure compliance and optimal performance.
Applications
  • Industrial automation systems requiring safety controller data communication
  • Control and diagnostic data transmission over CANopen networks
  • Integration in safety and control networks in manufacturing environments
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports efficient network communication reducing system downtime and energy waste
  • Low power consumption design minimizes energy usage in industrial applications
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK FLX0-GCAN100 Gateway Module is available for immediate purchase, ideal for industrial automation and safety network integration.
