Cast Resin Branch Joint for Low Voltage Cables | Up to 1kV | Water-Tight & Easy Installation by Cabac
The Cabac GTB Cast Resin Branch Joint is designed for low voltage cables up to 1kV, providing a compact, water-tight, and mechanically stress-equalizing solution for cable jointing in various environments including underground and submerged conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

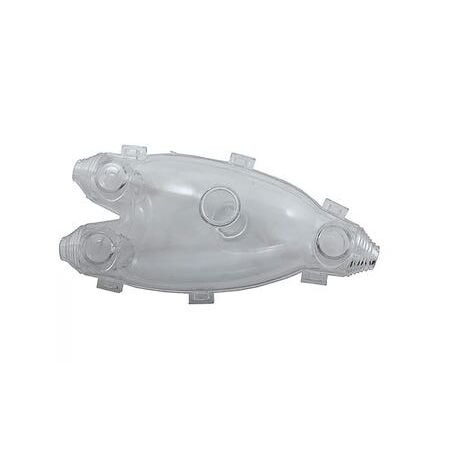

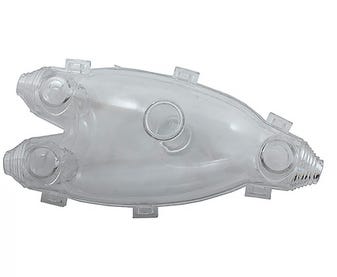

Product Name/Title: GTB CAST RESIN BRANCH JOINT
Brand: Cabac
SKU: GTB3
Alternatively Known As: Cast Resin Cable Joint, Resin Branch Joint, Low Voltage Cable Joint, Cable Resin Joint Kit
Technical Specifications
- Suitable for cables rated up to 1kV
- Compatible with single or multi-core telephone, signal, and power cables
- Cast resin is unfilled polyurethane with good adhesive strength to cable materials
- Soft elastic properties equalize mechanical stresses from thermal expansion
- Curing time: 1 hour before energising, 24 hours for full cure
- Can be used in temperatures above 20°C for proper curing
- Water submersion capability up to 1 meter depth
- Dimensions (H x L x W): 100mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Easy visual check before and during pouring of cast resin
- Pouring spouts ensure void-free resin fill
- Snap lock and pre-shaped cut-offs allow quick sealing of mould around the cable
- Complies with VDE standards
- Shelf life of 3 years at a maximum temperature of 35°C
Professional Installation Requirements
- Professional installation by a qualified electrician or cable jointing technician is recommended to ensure proper curing and sealing of the resin joint.
Applications
- Suitable for single or multi-core telephone, signal, and power cables up to 1kV
- Ideal for cables buried directly in the ground, on cable trays, rail installations
- Can be used for cables submerged in water up to 1m depth
- Suitable for cable repair applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyurethane resin reduces need for frequent replacements
- Water-tight design prevents environmental contamination and cable damage
- Long shelf life reduces waste and storage turnover
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac GTB Cast Resin Branch Joint is available for immediate purchase, ideal for electrical contractors and maintenance teams working on low voltage cable installations and repairs.
