CAT5e Feed-Thru RJ45 Connectors | 8P8C | 50 Micro-Inch Gold Plating | Pack of 100 by Ideal Electrical

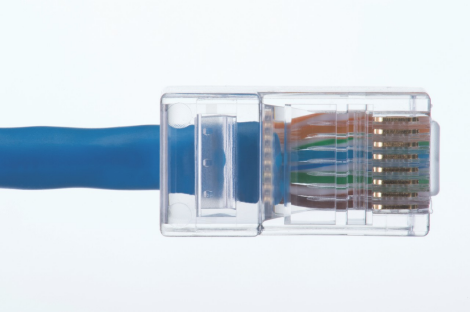

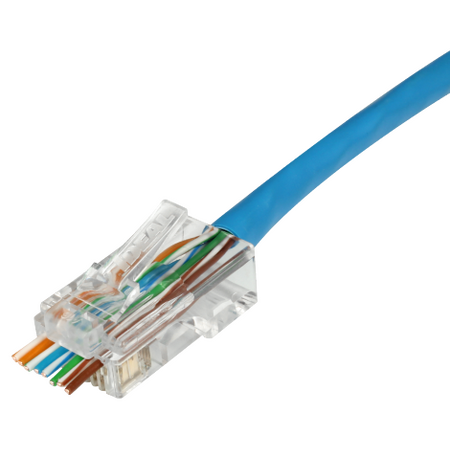

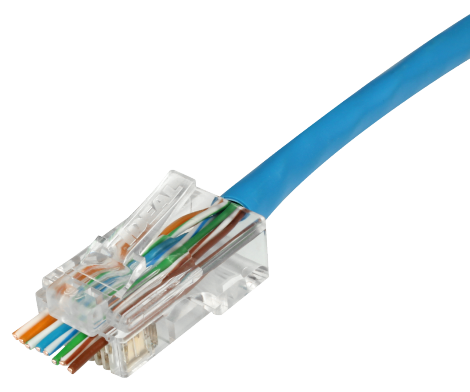

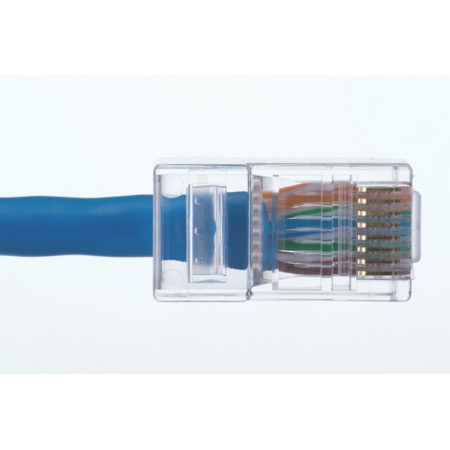

CAT5e Feed-Thru RJ45 connectors in a convenient 100 pack, designed for quick verification of conductor order before crimping. Ideal for data communication networks and PoE applications, these connectors feature 50 micro-inch gold plating for long-term reliability and compatibility with solid or stranded cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

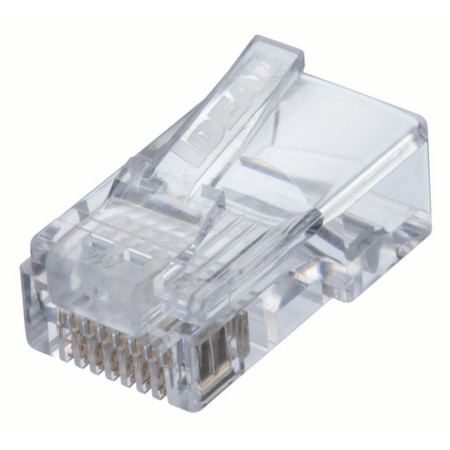

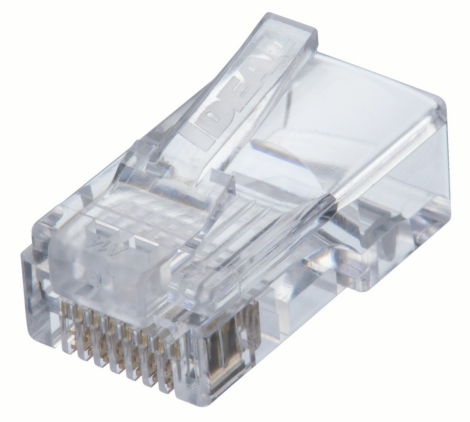

Product Name/Title: CAT5e Feed-Thru RJ45 Connectors (100/BG)
Brand: Ideal Electrical
SKU: IDL85-372
Alternatively Known As: RJ45 Modular Plugs, CAT5e RJ45 Connectors, Feed-Thru Ethernet Connectors, Network Cable Connectors
Technical Specifications
- Data Cable Type: CAT5e
- Termination Method: Crimp
- Quantity: Bag of 100
- Positions/Contacts: 8P8C
- Wire Type: Solid and Stranded
- Impedance: 100 ohms
- Feed-Thru: Yes
- Contact Plating: 50 micro-inch gold
- Max Cable Jacket Diameter: 0.270 inches
- Compatible with PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- Feed-Thru design enables quick verification of conductor order before crimping
- Compatible with IDEAL® FT-45® Crimp Tool for precision cutting
- Minimizes untwisting of cable pairs inside connector to 1/2 inch
- 50 micro-inch gold plating on contact area for long-term reliability
- Supports solid or stranded 23-24 AWG insulated copper conductors
- Max cable jacket outer diameter of 0.270 inches
- UL Listed and compatible with IEEE 802.3af/at/bt standards
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper cable termination and network performance.
Applications
- Data communication networks
- PoE, PoE+ and PoE++ compatible devices
- CAT5e cable assembly and termination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Feed-Thru design reduces material waste by enabling accurate cable assembly on first attempt
Warranty Information
Limited 1 Year warranty.
Available Now
Ideal Electrical CAT5e Feed-Thru RJ45 Connectors (100/BG) are available now for immediate purchase. Ideal for network installers and IT professionals requiring reliable and efficient CAT5e cable termination.
