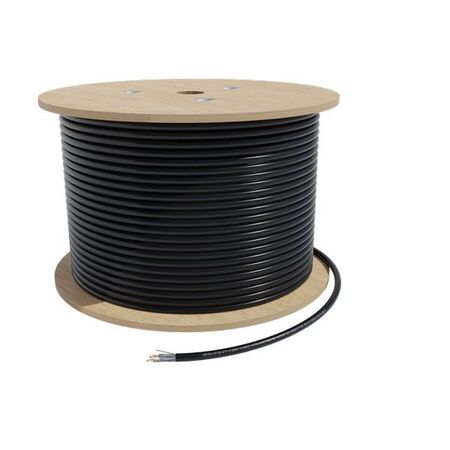

Cat Data Cable Cat6A 305m Blue Certech
Certech Cat Data Cable features Cat6A, 305m. Suited for structured horizontal data cabling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: U/FTP
- Jacket Material: PE
- Conductor Material: Bare Copper
- Insulation Material: Skin Foam Skin PE
- Cable Length: 305m
- Cable Diameter: 0.56mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.60±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 74%
- Operating Frequency: 500MHz
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.6mm x 305000mm x 0.56mm
- Weight: 15 kg
Key Features
- 305m length for extensive installations.
- U/FTP design for reduced crosstalk and interference.
- Gel-filled for moisture protection in underground applications.
- 100% bare copper conductors for optimal performance.
- Operating frequency of 500MHz for high-speed data transfer.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Ideal for underground installations requiring high-speed data transmission.
- Suitable for residential and commercial networking applications.
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- Moisture-resistant design extends the lifespan of the cable in underground applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now

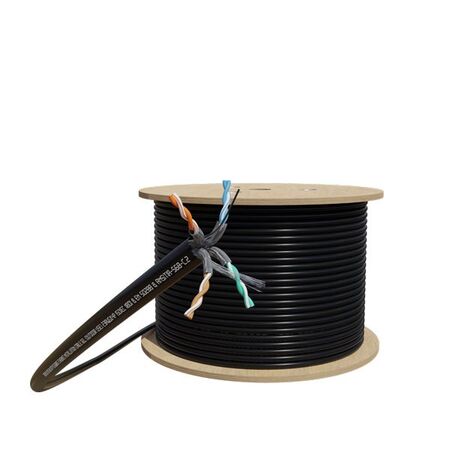

The CERTECH 305M Cat6A 10G U/FTP Solid Gel Filled Cable is available now for immediate purchase. Ideal for underground networking applications.
FAQ
Q: Why is this cable gel-filled and what does that mean for installation?
A: The gel filling provides moisture resistance, preventing water ingress along the cable length in underground or direct burial applications. This extends cable lifespan significantly compared to standard indoor cables used in outdoor or underground environments.
Q: What is the difference between U/FTP and UTP cable construction?
A: U/FTP (Unshielded overall, Foil-shielded Twisted Pairs) wraps each individual pair in foil shielding, reducing pair-to-pair crosstalk and interference. This makes it more suitable for high-speed 10G applications and environments with electrical interference compared to unshielded UTP cable.
