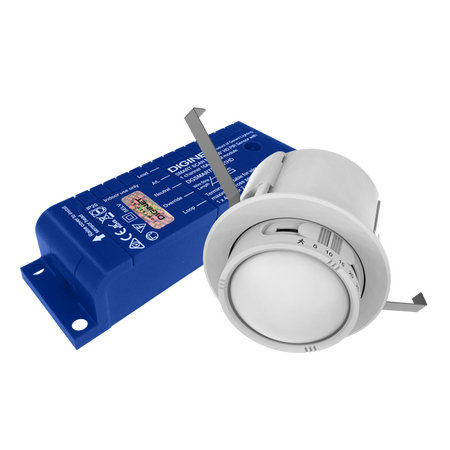

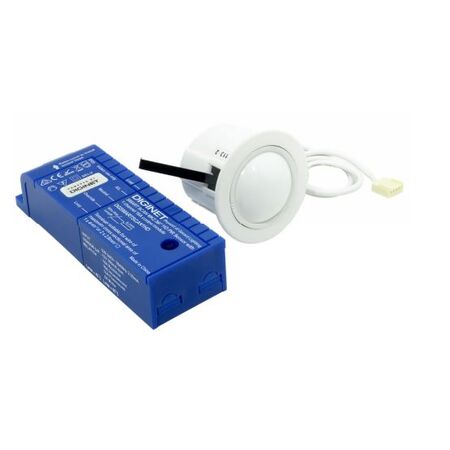

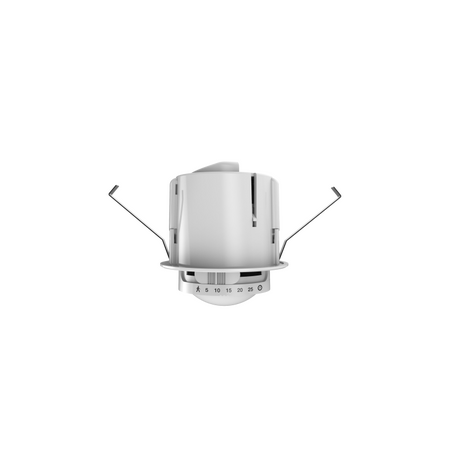

Ceiling Motion Sensor 360° Detection | HDIR™ | Light Level Detector
Ceiling motion sensor with 360° HDIR™ detection and integrated light level detector—ideal for energy-efficient lighting control. Built for both minor and major movement applications, with a flush mount design for unobtrusive installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ceiling Motion Sensor 360° Detection | HDIR™ | Light Level Detector
SKU: DGSMARTSCAN1HD
Alternatively Known As: Ceiling PIR Sensor, 360 Degree Motion Detector, HDIR Motion Sensor, Light Level Motion Sensor
Technical Specifications
- Detection: 360° high definition passive infrared (HDIR™) sensor
- Load Rating: 16A for inductive/capacitive loads
- Mounting: Flush ceiling mount
- Sensor Diameter: 60mm
- Controls: Adjustable time-out and light level settings
- Manual Override: Switch input for off control
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High sensitivity 360˚ detection array for minor and major movement
- Integrated light level detector to prevent switch-on with sufficient natural light
- Rated at 16A for switching inductive/capacitive loads
- Flush ceiling mounted with unobtrusive 60mm diameter design
- Hidden sensor head adjustment controls for time-out and light level
- Switch input for manual override off control
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct wiring and optimal sensor performance.
Applications
- Residential: Lighting control in homes
- Commercial: Offices, retail spaces, and public buildings
- Industrial: Warehouses and factories for automated lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by switching off lights when no movement is detected
- Prevents unnecessary lighting when natural light is sufficient, saving electricity
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Ceiling Motion Sensor 360° Detection with HDIR™ and Light Level Detector is available now for immediate purchase. Ideal for energy-efficient lighting control in residential, commercial, and industrial settings.
