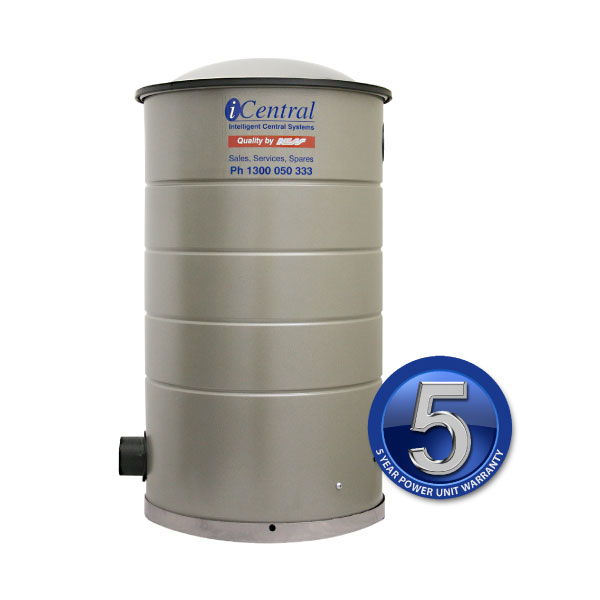

Central Vacuum Power Unit Essential V1.2 Filtered Bag iCentral
iCentral central vacuum power unit features a filtered bag design in the Essential V1.2 model. Ideal for central vacuum system installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral VAC-001 Essential V1.2, filtered-bag ducted vacuum power unit
Technical Specifications
- Model: Essential V1.2
- SKU: VAC-001
- Filtration: FilterBlue paper bag
- Motor: Ametek 119996 flow-through motor
- Peak Current: 5.5 A
- Vacuum: 2,837 mm water lift (111.7 in)
- Air Watts: 484–461
- Airflow: 120.5 CFM
- Noise Level: 66 dB
- Recommended Maximum Installation Distance: 35 metres
- Motor Life: 500 hours
- Speed Control: Not included
- Application Type: Trade-series central vacuum power unit
- Dimensions (H x L x W): 603mm x 310mm x 310mm
- Weight: 8.5 kg
Key Features
- Filtered-bag central vacuum design
- Ametek flow-through motor
- Suitable for new central vacuum installations and power-unit replacements
- Recommended for systems with up to 35 metres of installation distance
- Compact wall-mounted power unit format
- Paper bag filtration simplifies dust removal and disposal
Professional Installation Requirements
- Installation requires connection to a 230 V mains outlet and central vacuum ducting. Installation and electrical connection should be completed by suitably qualified tradespeople in accordance with manufacturer instructions and applicable Australian electrical requirements.
Applications
- Residential central vacuum systems
- Small offices and similar premises
- New central vacuum system installations
- Replacement or upgrade of compatible central vacuum power units
Standards & Compliance
- AS/NZS 60335.2.2:2020, including applicable amendments, is the relevant safety standard for centrally sited vacuum cleaners; product-specific certification was not verified.
Environmental Benefits
- Replaceable paper filter bags allow the power unit to be maintained without replacing the complete appliance
- Centralised dust collection can help keep collected debris out of occupied rooms during cleaning
- Durable motorised equipment can reduce replacement frequency when correctly maintained
Warranty Information
Five-year parts warranty for iCentral central vacuum power units. An additional one-year warranty may be available when the warranty is registered, subject to the manufacturer’s terms and conditions.
Available Now
Available through iCentral and authorised Australian distributors, subject to distributor stock levels.
