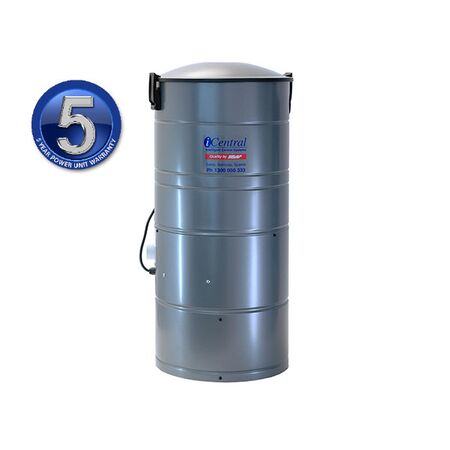

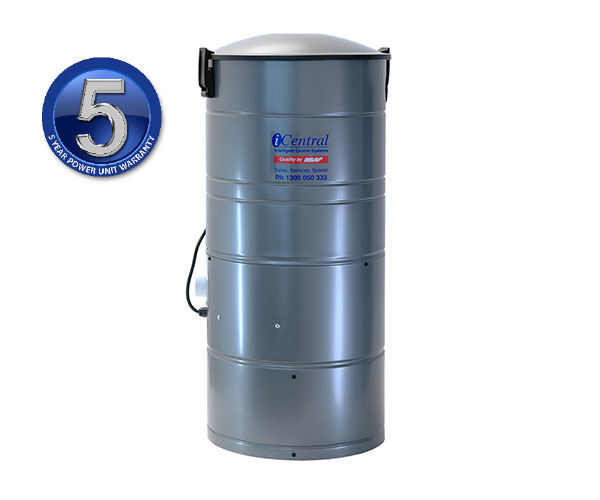

Weather Resistant Central Vacuum Power Unit Galvanised Body iCentral

BRAND: Ness
SKU: VAC-006
$1,715.30 List price: $2,287.10
+ −
30 Days Return Electricians Unlock Trade Access
iCentral weather resistant central vacuum power unit features a galvanised body and clip down lid. Ideal for central vacuum system installs.

Alternatively Known As: iCentral WP V3.1, iCentral VAC-006, Weather Resistant Central Vacuum Unit, Galvanised Central Vacuum Power Unit

Technical Specifications
  • Model: Deluxe WP V3.1
  • SKU: VAC-006
  • Collection System: Blue paper vacuum bag
  • Motor: Ametek 122259
  • Peak Current: 7.2 A
  • Flow Type: 8.4 inch bypass
  • Vacuum: 3,696 mm water lift
  • Air Watts: 716–682
  • Noise Level: 78 dB
  • Airflow: 143.2 CFM
  • Recommended Maximum Installation Distance: 90 m of pipe
  • Motor Life: 1,500 hours
  • Body Material: Galvanised painted steel
  • Lid Type: Clip-down
  • Country of Manufacture: United States
  • Weather Protection: Suitable for semi-exposed locations; not designed for direct rain
  • Dimensions (H x L x W): 700mm x 360mm x 360mm
  • Weight: 12 kg
Key Features
  • Weather-resistant construction for semi-exposed installations
  • Galvanised painted body for improved corrosion resistance
  • Secure clip-down lid
  • Full-height body for maximum vacuum bag expansion
  • Suitable for residential homes, offices and light commercial installations
  • Supports central vacuum pipe runs up to 90 metres
  • Long-life Ametek bypass motor
  • Bagged filtration system for straightforward dust collection
Professional Installation Requirements
  • Installation should be completed by a qualified central-vacuum installer, with mains electrical connection performed by a licensed electrician in accordance with applicable Australian electrical installation requirements. The unit must be protected from direct rain and installed with adequate motor ventilation and exhaust clearance.
Applications
  • Residential central vacuum systems
  • Office and light commercial cleaning systems
  • Central vacuum installations requiring semi-exposed mounting
  • New central vacuum installations and power-unit replacements
  • Systems with pipe runs up to 90 metres
Standards & Compliance
  • AS/NZS 60335.2.69:2017 is the relevant safety standard for centrally-sited commercial vacuum cleaners; confirm the product’s specific compliance documentation before installation.
Environmental Benefits
  • Galvanised steel construction is durable and recyclable at end of service life
  • Long-life motor design can reduce replacement frequency and associated waste
  • Replaceable paper collection bags support hygienic maintenance without replacing the complete power unit
  • Central vacuum exhaust placement can help keep collected dust and fine particles outside occupied rooms
Warranty Information

Five-year warranty for the central vacuum power unit. iCentral’s warranty terms also provide a further one-year bonus warranty when the warranty card is returned or the product is registered online, subject to the stated conditions.

Available Now

Available through iCentral/Valet and authorised Australian distributors; confirm current stock and lead time with the distributor.
