Trade Discount 25%

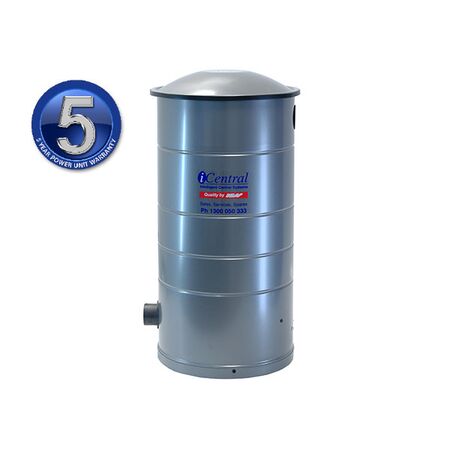

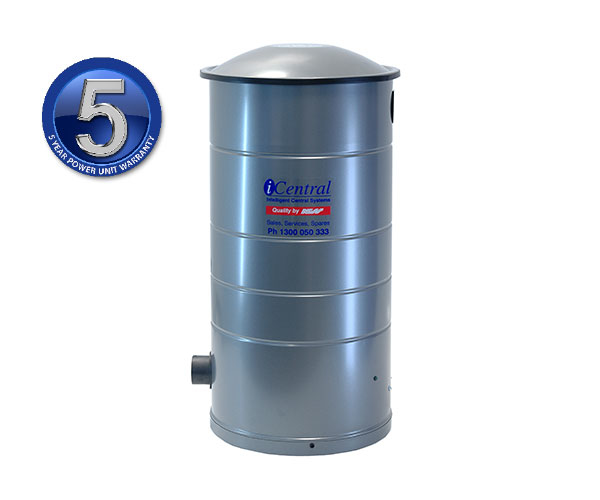

Central Vacuum Power Unit V2.2 60m Pipe Distance Filtered Bag iCentral
iCentral V2.2 central vacuum power unit features a filtered bag design and a 60m pipe distance. Ideal for central vacuum system installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral V2.2 Bagged Central Vacuum, DYNAMIC V2.2 Power Unit, iCentral Filtered Bag Vacuum Unit
Technical Specifications
- Filtration: Max-Flo HEPA bag
- Motor: Ametek Ultra III Ultra 122286
- Peak Current: 7.6 A
- Flow Type: 5.7-inch flow-through motor
- Vacuum: 3,690 mm water lift (145.3 inches)
- Air Power: 694–655 air watts
- Airflow: 132.7 CFM
- Noise Level: 65 dB
- Speed Control: Not available
- Recommended Maximum Pipe Distance: 60 m
- Motor Life: Approximately 500 hours
- Installation Location: Sheltered garage, carport or covered area
- Country of Manufacture: USA
- Dimensions (H x L x W): 700mm x 310mm x 310mm
- Weight: 5 kg
Key Features
- Designed for central vacuum systems in homes and offices
- Suitable for pipe runs up to 60 metres
- Filtered bag configuration for dust collection and filtration
- Compatible with most older Valet models and many other brands
- Includes vacuum bag, bag adapter, mounting bracket, bottom baffle and user manual
- Suitable for replacement and upgrade installations
- Requires installation in a sheltered location
Professional Installation Requirements
- Installation should be performed by a suitably qualified central-vacuum installer and, where connection to mains electrical wiring is required, a licensed electrician. Follow the manufacturer's installation instructions and applicable Australian electrical requirements.
Applications
- Residential central vacuum systems
- Home renovation and central vacuum replacement projects
- Office and light commercial cleaning systems
- Upgrading older Valet or compatible central vacuum power units
- Central vacuum installations with pipe distances up to 60 metres
Standards & Compliance
- Relevant appliance safety standard: AS/NZS 60335.2.2 for vacuum cleaners and water-suction cleaning appliances, used with AS/NZS 60335.1 where applicable
- Electrical installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
- Replaceable filtered bags can extend the service life of the power unit and reduce replacement waste
- Centralised extraction removes the need to transport a portable vacuum between rooms
- Durable motor and serviceable components support longer equipment life
- Filtered operation helps reduce the release of collected dust into occupied areas
Warranty Information
Five-year warranty on the iCentral central vacuum power unit. An additional one-year warranty may be available when the warranty is registered or the warranty card is returned, subject to the manufacturer's terms.
Available Now
Available through iCentral, Valet and authorised Australian distributors, subject to distributor stock.
