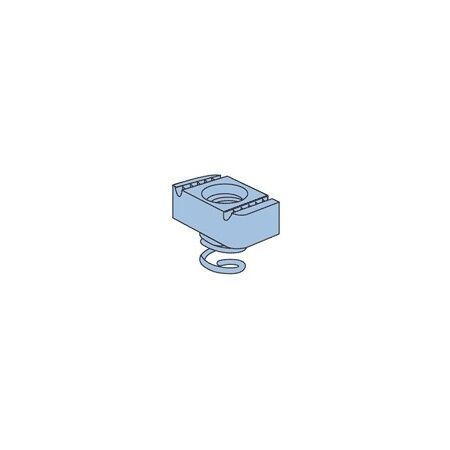

Channel Nut with Spring M10 | Hot Dipped Galvanised | P4008H
Channel nut with spring, M10 size, and hot dipped galvanised finish—ideal for secure fastening in construction and industrial applications. Built for durability and corrosion resistance, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Channel Nut with Spring M10 | Hot Dipped Galvanised | P4008H
SKU: P4008H
Alternatively Known As: Spring Channel Nut M10, Unistrut Spring Nut M10, Hot Dipped Galvanised Channel Nut
Technical Specifications
- Material: Steel bars, case hardened zinc plated
- Thread Type: Metric coarse
- Finish: Hot dipped galvanised to AS1214
- Compliance: Nuts and bolts manufactured to AS1111 & AS1112
- Design Bolt Torque: Refer to Engineering Data Page 118
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.05 kg
Key Features
- Manufactured from steel bars with case hardened zinc plating for positive biting action
- Includes spring for secure positioning in Unistrut channels
- Metric coarse threads for compatibility with standard bolts
- Hot dipped galvanised finish for enhanced corrosion resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with Unistrut systems to ensure proper torque and secure fastening.
Applications
- Structural framing and support systems
- Electrical and mechanical installations
- Construction and building projects requiring secure fastening
Standards & Compliance
- AS1111 – Metric Coarse Thread Bolts and Nuts
- AS1112 – Metric Coarse Thread Bolts and Nuts
- AS1214 – Hot Dipped Galvanised Coatings on Fasteners
- AS1897 – Zinc Plating of Fasteners
Environmental Benefits
- Hot dipped galvanised finish provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty as per Unistrut standard terms and conditions.
Available Now
The Unistrut Channel Nut with Spring M10 Hot Dipped Galvanised P4008H is available now for immediate purchase. Ideal for construction, electrical, and mechanical fastening applications.
