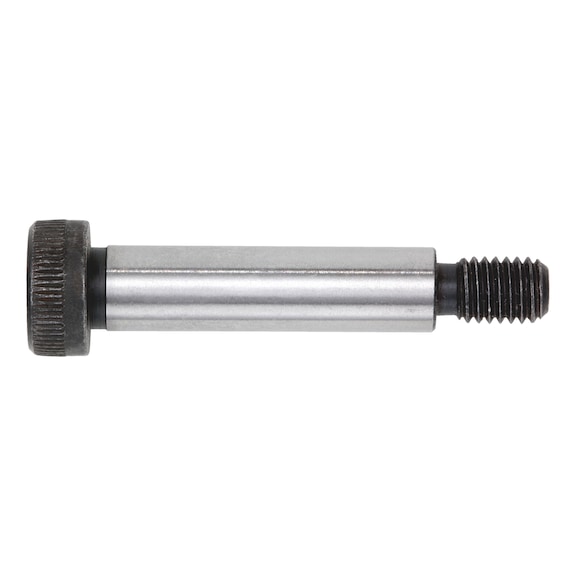

Cheese Head Screw ISO 7379 | Steel 12.9 | Hexagon Socket Head | Shoulder Design | by WURTH
The Cheese Head Screw ISO 7379 is crafted from high-strength steel grade 12.9, featuring a hexagon socket head and shoulder design for optimal lateral force absorption. Ideal for mechanical assemblies and industrial applications, this screw ensures precise positioning and durability, making it a reliable choice for automotive and aerospace components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cheese Head Screw ISO 7379 | Steel 12.9 | Hexagon Socket Head | Shoulder Design | by WURTH
Brand: WURTH
SKU: 411885 30
Alternatively Known As: Shoulder screw, Hex socket shoulder bolt, Cheese head shoulder screw, Precision shoulder screw
Technical Specifications
- Material: Steel grade 12.9
- Head type: Cheese head with hexagon socket
- Standard: ISO 7379
- Tolerance: f9
- Shank diameter varies: M5 = 6 mm, M10 = 12 mm, M20 = 24 mm
- Load capacity limited in ultimate load test according to ISO 898-1
- Marking: 0 prefix before actual strength class due to geometry
- Dimensions (H x L x W): 30mm x 30mm x 6mm
- Weight: 0.1 kg
Key Features
- Shoulder screws designed to absorb lateral forces
- Ensures precise positioning of workpieces relative to each other
- Shank diameter varies for M5, M10, and M20 thread sizes
- Limited ultimate load capacity due to geometry, marked with a 0 before strength class
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and positioning for optimal performance.
Applications
- Mechanical assemblies requiring precise positioning and lateral force absorption
- Industrial machinery and equipment
- Automotive and aerospace components
- General engineering applications where shoulder screws are needed
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- High strength reduces material waste by ensuring long service life
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The WURTH Cheese Head Screw with Hexagon Socket Head and Shoulder ISO 7379 is available for immediate purchase, ideal for precision mechanical and industrial applications.
