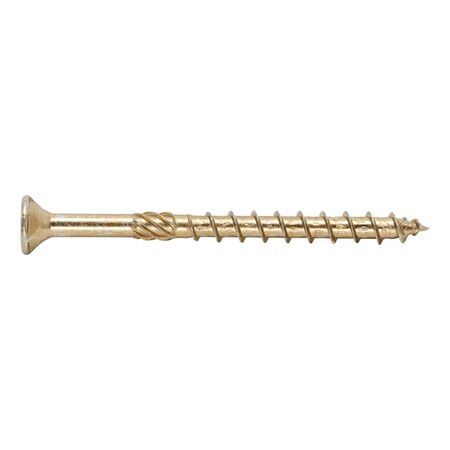

Chipboard Screws ASSY® 3.0 | Zinc-Plated Yellow | Countersunk Head | AW Drive | @Pack of 75 | by Wurth
Chipboard screws ASSY® 3.0 are designed for optimal performance in furniture construction and carpentry. Featuring a zinc-plated yellow finish for corrosion resistance and a countersunk head with milling pockets to minimize surface damage, these screws ensure secure fastening in various timber applications. Ideal for professionals, they come with an AW drive for efficient torque transmission and reduced wood splitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 8 mm
- Length: 140 mm
- Thread length: 80 mm
- Head type: Countersunk with milling pockets
- Head diameter: 15 mm
- Head height: 4.6 mm
- Internal drive: AW40
- Thread type: Wood screw thread, partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 5.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Min/max screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.6mm x 140mm x 15mm
- Weight: 0.15 kg
Key Features
- Zinc-plated yellow hardened steel for corrosion resistance
- Partial coarse wood screw thread with asymmetric design for faster screwing
- Countersunk head with milling pockets to minimize surface damage
- AW drive for optimum force transmission and secure bit fit
- End milling cutter reduces screw-in torque and protects tools
- Ring/mating thread reduces wood splitting and blow-outs
- Suitable for solid wood, laminated beams, CLT, timber veneer, OSB, chipboard
- Approved with ETA-11/0190 for screw requiring approval
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building codes and optimal fastening performance.
Applications
- Furniture construction
- Interior fittings
- Carpentry
- Rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Structural woodwork
- Universal wood fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Efficient screwing reduces energy and tool wear
- Minimized wood damage supports sustainable timber use
Warranty Information
Wurth provides a standard product warranty covering manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
Wurth ASSY® 3.0 zinc-plated yellow chipboard screws 75 PCS are available for immediate purchase, ideal for furniture, carpentry, and timber construction applications.
