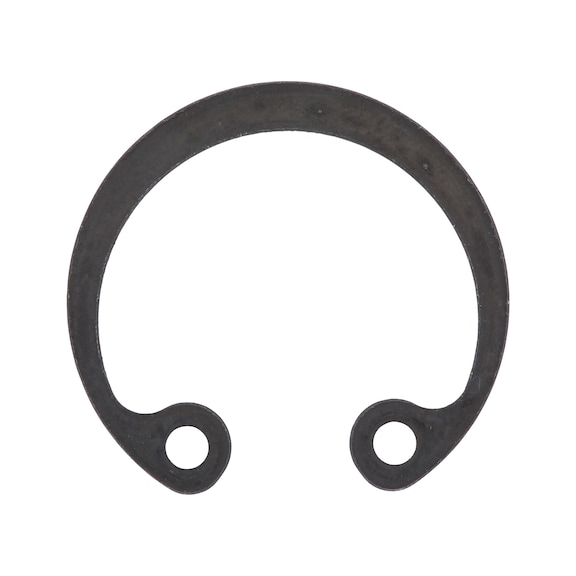

Circlip for Bore Hole | Standard J Shape DIN 472 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for bore hole designed in a standard J shape, made from durable spring steel with a phosphated and oiled surface for enhanced corrosion resistance. Ideal for mechanical assemblies in automotive and industrial applications, this circlip ensures secure retention of components on shafts or in bores, making it a reliable choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole | Standard J Shape DIN 472 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 43917
Alternatively Known As: Bore Hole Circlip, DIN 472 Circlip, Spring Steel Retaining Ring, J Shape Circlip
Technical Specifications
- Suitable for holes: 17 mm
- Suitable for groove diameter: 17.8 mm
- Outer diameter (d1): 18.3 mm
- Eye width (a1): 3.9 mm
- Width (b1): 2.1 mm
- Thickness (s1): 1 mm
- Standards: DIN 472
- Material: Spring steel
- Surface: Phosphated and oiled
- Design: Standard design
- Form: J
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 18mm x 18mm
- Weight: 0.02 kg
Key Features
- Standard design circlip with shape J for bore holes
- Made from durable spring steel
- Phosphated and oiled surface for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with mechanical retaining components to ensure proper fit and safety.
Applications
- Mechanical assemblies requiring secure retention of components on shafts or in bores
- Automotive, industrial machinery, and equipment manufacturing
- General engineering and maintenance tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Circlip for bore hole standard version shape J DIN 472 is available for immediate purchase, ideal for mechanical and industrial applications requiring secure component retention.
