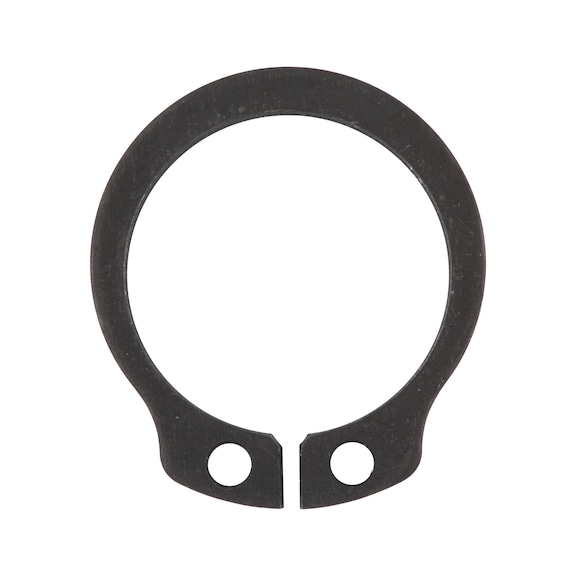

Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for shafts DIN 471 made from durable spring steel with a phosphated and oiled finish, ensuring corrosion resistance. Ideal for high-speed applications, it safely limits movement of machine parts while transferring high pressure and tensile forces. Perfect for mechanical assemblies requiring secure shaft positioning, this pack of 25 is designed for easy installation with appropriate circlip pliers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4386
Alternatively Known As: Shaft Circlip, DIN 471 Circlip, Spring Steel Circlip, Shaft Retaining Ring, Snap Ring for Shafts
Technical Specifications
- Suitable for shafts: 6 mm
- Suitable for groove diameter: 5.7 mm
- Internal diameter (d1): 5.6 mm
- Eye width (a1): 2.7 mm
- Width (b1): 1.3 mm
- Thickness (s1): 0.7 mm
- Standards: DIN 471
- Design: Standard design
- Material: Spring steel
- Surface: Phosphated and oiled
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 6mm x 6mm
- Weight: 0.01 kg
Key Features
- Safely limits freedom of movement even with rotary movements of machine parts
- Transfers high pressure, tensile, and impact forces without torsion
- Transfers high axial forces from machine parts applying pressure to groove walls
- Can be used at high speeds
- Quick and easy removal using appropriate pliers
- Phosphated and oiled surface for corrosion resistance
- Made from durable spring steel
Professional Installation Requirements
- Installation requires appropriate circlip pliers and should be performed by trained personnel to ensure correct fitting and safety.
Applications
- Used for safely limiting freedom of movement of machine parts on shafts and in bore holes
- Suitable for high-speed shaft applications
- Ideal for transferring high pressure, tensile, and impact forces without torsion
- Used in mechanical assemblies requiring axial force transfer and secure shaft positioning
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable spring steel construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Circlip for shafts DIN 471 is available now for immediate purchase. Ideal for mechanical and industrial applications requiring secure shaft retention.
