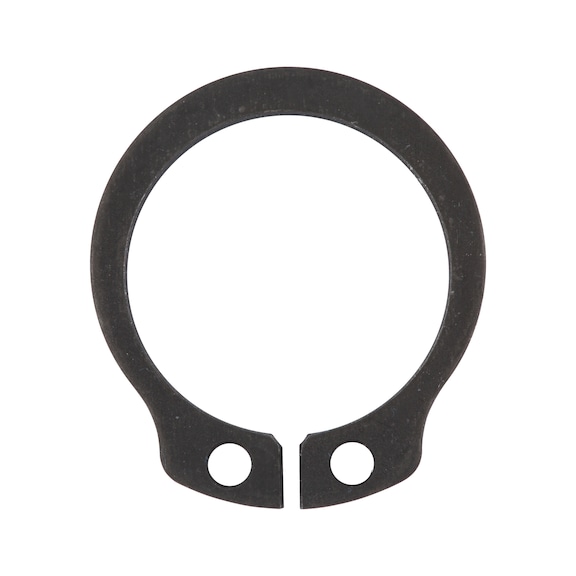

Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for shafts DIN 471 made from durable spring steel, featuring a phosphated and oiled finish. This circlip is designed to safely limit the movement of machine parts, making it ideal for high-speed applications. With its ability to transfer high pressure and tensile forces without torsion, it's perfect for mechanical assemblies requiring secure fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4388
Alternatively Known As: Shaft Circlip, DIN 471 Circlip, Spring Steel Circlip, Shaft Retaining Ring, DIN 471 Snap Ring
Technical Specifications
- Suitable for shafts: 8 mm
- Suitable for groove diameter: 7.6 mm
- Internal diameter (d1): 7.4 mm
- Eye width (a1): 3.2 mm
- Width (b1): 1.5 mm
- Thickness (s1): 0.8 mm
- Standards: DIN 471
- Design: Standard design
- Material: Spring steel
- Surface: Phosphated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.5mm x 8mm x 8mm
- Weight: 0.01 kg
Key Features
- Safely limits freedom of movement even with rotary movements of machine parts
- Transfers high pressure, tensile, and impact forces without torsion
- Transfers high axial forces from machine parts applying pressure to groove walls
- Can be used at high speeds
- Quick and easy removal using appropriate pliers
Professional Installation Requirements
- Installation requires appropriate circlip pliers and should be performed by trained personnel to ensure safety and correct fitting.
Applications
- Used for safely limiting freedom of movement of machine parts on shafts and in bore holes
- Suitable for rotary movements of machine parts on shafts
- Ideal for transferring high pressure, tensile, and impact forces without torsion
- Can be used at high speeds in mechanical assemblies
- Quick and easy removal with appropriate pliers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable spring steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Circlip for shafts is available for immediate purchase, ideal for mechanical and industrial applications requiring secure shaft fastening.
