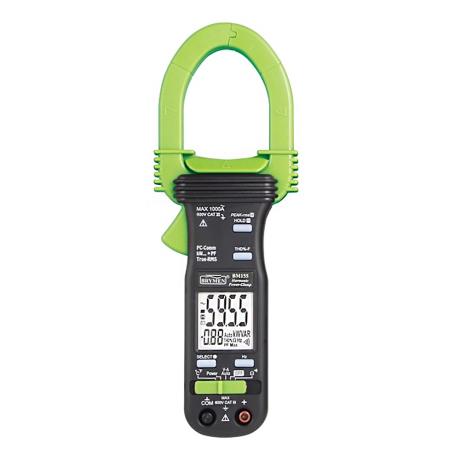

Clamp Meter 1000A AC 600V AC/DC True RMS | Auto-Ranging & Dual Backlight | PC Connectivity | @Each by Wattmaster
The Clamp Meter 1000A AC 600V AC/DC True RMS is perfect for electrical testing and troubleshooting, featuring auto-ranging capabilities and a dual backlight display for easy reading in low light. Designed for qualified electricians and technicians, it offers accurate measurements with overload protection and PC connectivity for data logging, making it an essential tool for industrial and commercial maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clamp Meter 1000A AC 600V AC/DC True RMS | Auto-Ranging & Dual Backlight | PC Connectivity | @Each by Wattmaster
Brand: Wattmaster
SKU: WATEL-155
Alternatively Known As: True RMS Clamp Meter, AC/DC Clamp Meter, Electrical Clamp Meter, Current Clamp Meter
Technical Specifications
- Current Measurement: 1000A AC
- Voltage Measurement: 600V AC/DC
- True RMS for accurate AC measurements
- Max Jaw Opening: 45mm
- Auto-ranging and auto power off
- Dual backlight display
- Data hold function
- Overload protection
- PC connectivity for data logging
- Complies with IEC 61010-1 safety standards
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.5 kg
Key Features
- Intelligent ‘auto check’ feature automatically detects and selects AC/DC voltage function
- Auto-ranging and auto power off for convenience and battery saving
- Dual backlight display for easy reading in low light conditions
- PC connection capability for data logging purposes
- Data hold function and overload protection
- Max jaw opening size 45mm
- Complies with IEC 61010-1 specifications
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and technicians.
Applications
- Electrical testing and troubleshooting
- Industrial and commercial electrical maintenance
- Data logging for electrical parameters
- Measurement of AC/DC voltage and current
Standards & Compliance
- Complies with AS/NZS 61010-1 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Auto power off feature conserves battery life, reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Clamp Meter 1000A AC 600V AC/DC True RMS is available now for immediate purchase. Ideal for electrical testing, maintenance, and data logging applications.
