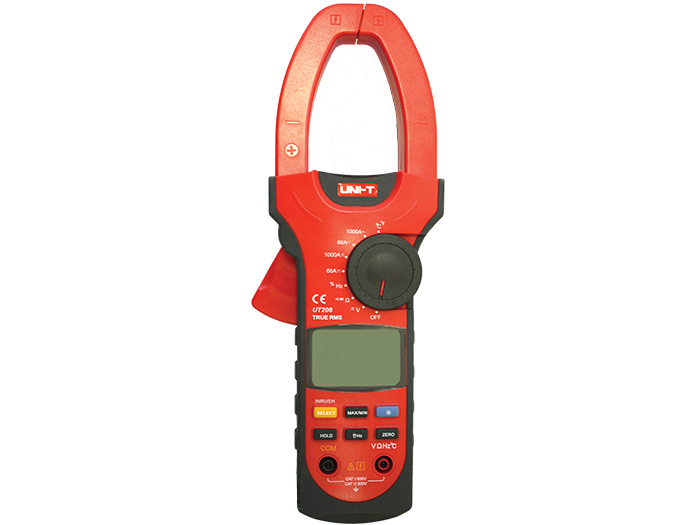

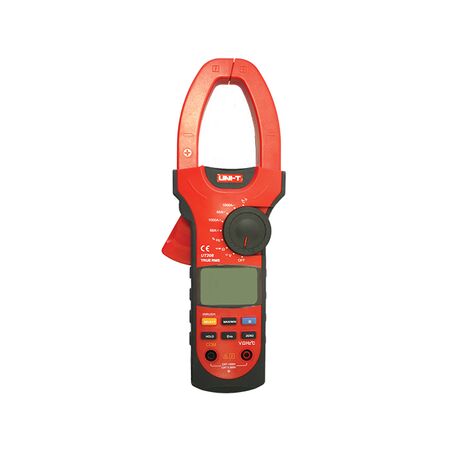

Clamp Meter 1000A AC/DC TRMS | 600V Voltage | -40°C to 1000°C | Rugged Design by Aegis

BRAND: Aegis

SKU: CZ20066

$310.20 List price: $411.80

+ −

30 Days Return Delivery Options

Clamp meter with 1000A AC/DC current and 600V voltage measurement—ideal for commercial and industrial electrical testing. Built for durability, with a rugged design and wide temperature range.

Description
Attachments

Product Name/Title: Clamp Meter 1000A AC/DC TRMS

Brand: Aegis

SKU: CZ20066

Alternatively Known As: Clamp Meter 1000A, AC/DC Clamp Meter, TRMS Clamp Meter, Industrial Clamp Meter, Electrical Clamp Meter

Technical Specifications

Current: 1000A AC/DC
Voltage: 600V AC/DC
Resistance: 66 Mohm
Frequency: 66 MHz
Temperature: -40°C to 1000°C
Continuity and diode testing
Inrush current measurement
Auto ranging
Data hold, peak max/min
Analogue bar graph
Backlight
Auto power off
Jaw opening: 55mm
IEC 61010: CatII 600V, CatIII 300V
Dimensions (H x L x W): 180mm x 40mm x 80mm
Weight: 0.5 kg

Key Features

Measures current up to 1000A AC/DC
Voltage measurement up to 600V AC/DC
Resistance measurement up to 66 Mohm
Frequency measurement up to 66 MHz
Temperature range from -40°C to 1000°C
Continuity and diode testing
Inrush current measurement
Auto ranging and data hold functions
Peak max/min recording
Analogue bar graph display
Backlight for low light conditions
Auto power off to save battery
Jaw opening of 55mm for cable clamping
Rugged design for industrial use
Includes carry case

Professional Installation Requirements

No professional installation required; however, use by qualified personnel is recommended for safety and accuracy.

Applications

Commercial electrical testing and maintenance
Industrial electrical diagnostics and troubleshooting
Electrical contractors and electricians for field use

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)
AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment

Environmental Benefits

Auto power off feature reduces battery waste and extends device life.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Aegis Clamp Meter 1000A AC/DC TRMS is available now for immediate purchase. Ideal for commercial and industrial electrical testing applications.

Download Data Sheet (CZ20066_BRC01-01.pdf, 348 Kb) [Download]
