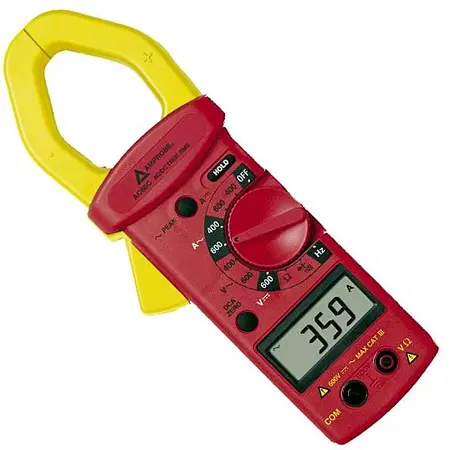

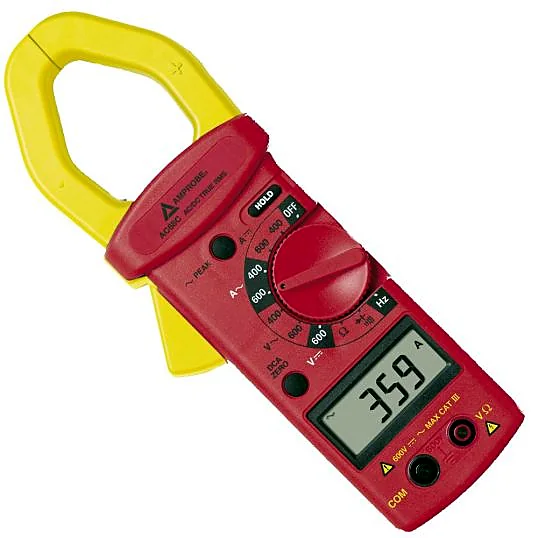

Clamp Meter DMM AC DC 600V 400A AC Current Repelec

BRAND: Repelec
SKU: AMPACD-14PLUS
$385.70 List price: $466.80
+ −
30 Days Return Electricians Unlock Trade Access
The Clamp Meter DMM is designed for HVAC and electrical professionals, measuring AC DC voltage up to 600V and AC current up to 400A.

Product Name/Title: Clamp Meter/DMM | AC/DC 600V | 400A AC Current | True RMS Measurement | @Pack by Repelec

Brand: Repelec

SKU: AMPACD-14PLUS

Alternatively Known As: Clamp Multimeter, HVAC Clamp Meter, Digital Clamp Meter, AMPACD-14PLUS, Repelec Clamp Meter

Technical Specifications
  • AC Voltage Range: 0-600V
  • DC Voltage Range: 0-600V
  • AC Current Range: 0-400A
  • True RMS measurement
  • Temperature Measurement: -20°C to 1000°C
  • Resistance Measurement: up to 40MΩ
  • Continuity and diode test
  • Non-contact voltage detection
  • Display: Dual, backlit LCD
  • Safety Rating: CAT III 600V
  • Power Supply: 2 x AAA batteries
  • Dimensions (H x L x W): 220mm x 40mm x 80mm
  • Weight: 0.35 kg
Key Features
  • Measures AC/DC voltage up to 600V
  • Measures AC current up to 400A
  • True RMS for accurate readings
  • Large dual display with backlight
  • Temperature measurement capability
  • Continuity and diode testing
  • Data hold and max/min functions
  • Non-contact voltage detection
  • CAT III 600V safety rating
Professional Installation Requirements
  • No installation required. For professional use by qualified electricians and HVAC technicians. Follow all safety guidelines and use appropriate PPE.
Applications
  • HVAC system diagnostics and maintenance
  • Electrical installation and troubleshooting
  • Industrial and commercial electrical work
  • General electrical testing for AC/DC voltage and current
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Enables efficient electrical diagnostics, reducing unnecessary equipment replacement and electronic waste.
  • Energy-efficient operation with auto power-off feature.
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The Repelec AMPACD-14PLUS Clamp Meter/DMM is available for immediate purchase. Ideal for HVAC, electrical installation, and maintenance professionals.
