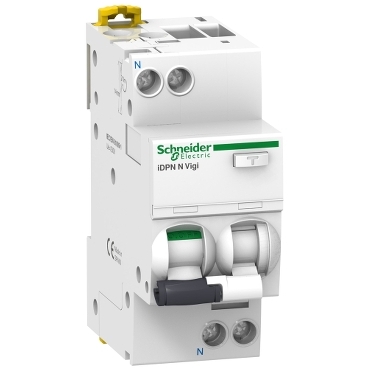

Clipsal Acti 9 IDPN N VIGI C 40A 1P+N 30mA SI | Super Immunised Technology | Compact Design | Visual Trip Indicator | @Pack of 1 | by Clipsal
The Clipsal Acti 9 IDPN N VIGI C 40A 1P+N 30mA SI is a combined miniature circuit breaker and residual current device, perfect for residential, commercial, and light industrial applications. With a rated current of 40A and 30mA sensitivity, it features Super Immunised technology to prevent nuisance tripping and a visual trip indicator for quick fault identification. Ensure safety and compliance with this reliable circuit protection solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal Acti 9 IDPN N VIGI C 40A 1P+N 30mA SI | Super Immunised Technology | Compact Design | Visual Trip Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D33640
Alternatively Known As: Acti 9 RCBO, Clipsal 40A RCBO, SCHA9D33640, Acti 9 IDPN N Vigi, Clipsal Residual Current Circuit Breaker, Clipsal 1P+N RCBO
Technical Specifications
- Rated current: 40A
- Poles: 1P+N
- Tripping curve: C
- Residual current sensitivity: 30mA
- Super Immunised (SI) technology
- Rated voltage: 230/240V AC
- Breaking capacity: 6kA
- Mounting: DIN rail
- Visual trip indicator
- IP20 (device), IP40 (in enclosure)
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.15 kg
Key Features
- Combined miniature circuit breaker (MCB) and residual current device (RCD) in one unit
- Rated current: 40A
- 1 pole + neutral (1P+N) configuration
- Tripping curve: C
- Residual current sensitivity: 30mA
- SI (Super Immunised) for high immunity to nuisance tripping
- Compact modular design for easy installation
- Visual trip indicator for quick fault identification
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Circuit protection for homes and apartments
- Commercial: Offices, retail, and hospitality electrical distribution boards
- Industrial: Light industrial switchboards requiring RCD protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhanced electrical safety reduces risk of fire and electrical hazards.
- Long product lifespan minimises replacement waste.
- Compact design reduces material usage.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti 9 IDPN N Vigi C 40A 1P+N 30mA SI RCBO (SCHA9D33640) is available for immediate purchase. Ideal for residential, commercial, and light industrial circuit protection applications.
