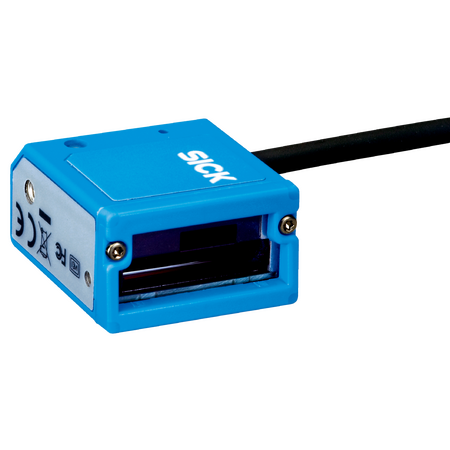

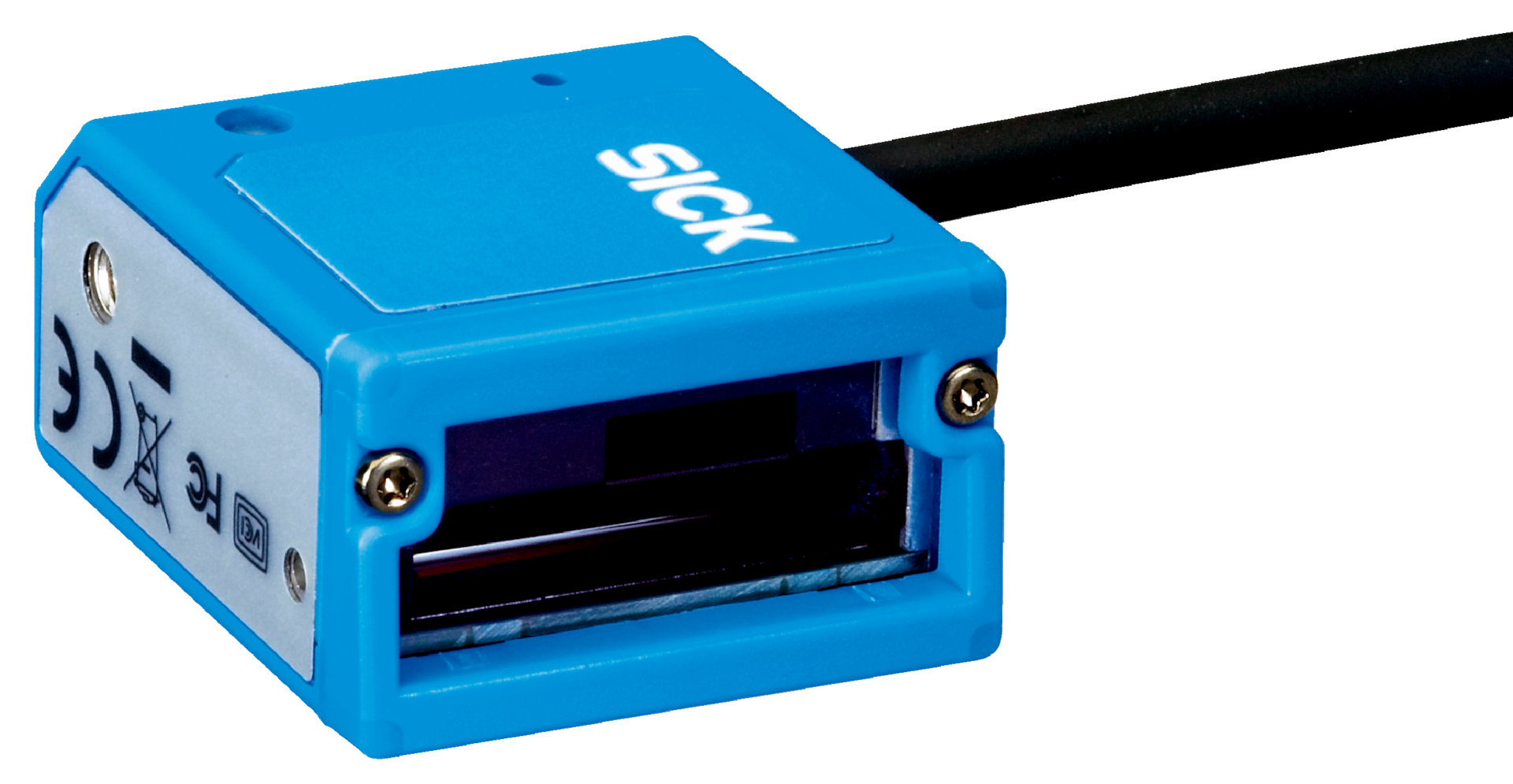

CLV505-1000 | Fixed mount barcode scanners
The SICK CLV505-1000 is a mid-range fixed mount barcode scanner designed for reliable 1D barcode reading in industrial and logistics applications, featuring a laser light source and robust IP54 housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CLV505-1000 | Fixed mount barcode scanners
Brand: SICK
SKU: 1046319
Alternatively Known As: Fixed mount barcode reader, Industrial barcode scanner, Laser barcode scanner, SICK CLV505 scanner
Technical Specifications
- Connection type: 1 x cable open cable end (1.5 m)
- Supply voltage: 5 V DC, ±10%
- Power consumption: typically 205 to 500 mA
- Laser class: Class 2, compliant with EN 60825-1 and IEC 60825-1
- Aperture angle: ≤ 40°
- Reading distance: 60 mm to 330 mm
- Scanning frequency: up to 1,000 Hz
- Code resolution: 0.15 mm to 1 mm
- Readable code structures: 1D codes including Code 11, Code 39, Code 128, Codabar, UPC, EAN, GS1 DataBar, and others
- Enclosure rating: IP54
- Protection class: III
- Weight: approximately 30 g without cable
- MTBF: 10,000 hours
- Ambient operating temperature: 0 °C to +45 °C
- Permissible relative humidity: up to 90%, non-condensing
- Ambient light immunity: 2,000 lx
- Bar code print contrast (PCS): ≥ 45%
- Dimensions (H x L x W): 17mm x 29mm x 34.5mm
- Weight: 0.1 kg
Key Features
- Mid range fixed focus line scanner
- Laser light source, visible red 650 nm
- Reading distance from 60 mm to 330 mm
- Scanning frequency up to 1,000 Hz
- Reads 1D barcode types including Code 39, Code 128, UPC, EAN, and more
- IP54 rated enclosure for dust and splash protection
- Light blue housing with plastic window
- Equipped with LED optical indicator and buzzer for acoustic signals
- Digital inputs and outputs for integration with control systems
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Retail and inventory control
- Manufacturing process tracking
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with typical 205 to 500 mA current draw
- Durable IP54 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV505-1000 Fixed Mount Barcode Scanner is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
