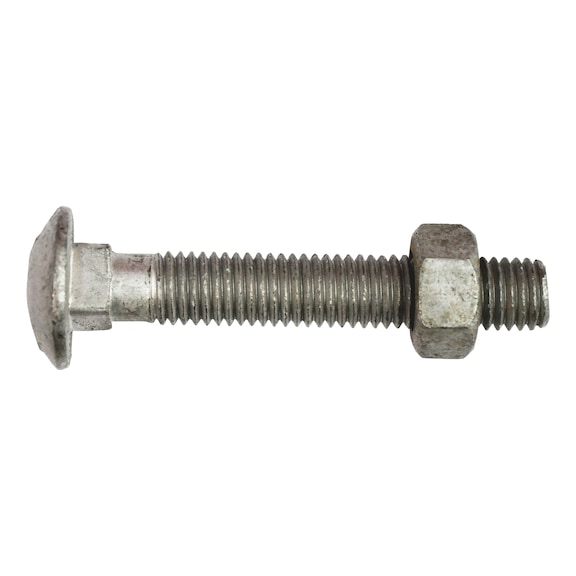

Coach Bolts with Nuts | Square Neck Design | Hot Dip Galvanized Finish | @Pack of 25 | by Wurth
Coach Bolts with Nuts featuring a square neck design and hot dip galvanized finish are perfect for outdoor timber applications. Designed for secure fastening, these bolts prevent turning during installation, making them ideal for fencing, gates, and timber furniture assembly. With a smooth low profile domed head, they offer both aesthetic appeal and security, ensuring durability in various weather conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coach Bolts with Nuts | Square Neck Design | Hot Dip Galvanized Finish | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 3619812130
Alternatively Known As: Coach Bolt Set, Square Neck Bolt, Galvanised Coach Bolts, Timber Coach Bolts, Hex Bolts with Nuts
Technical Specifications
- Thread type x nominal diameter: M12
- Length: 130 mm
- Material: Steel
- Property class: 4.6
- Surface: Hot dip galvanized
- Head diameter: 27 mm
- Head height: 6.4 mm
- Square width: 12 mm
- Square height: 6.4 mm
- Thread pitch: 1.75 mm
- Shank diameter: 12.7 mm
- Thread length: 36 mm
- Product class: C
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 130mm x 27mm
- Weight: 1.2 kg
Key Features
- Square neck prevents fastener from turning during installation, especially in timber applications
- Smooth low profile domed head provides a pleasant visual appearance and security as the fastener can only be removed from one side
- Hot dipped galvanised finish ideal for outdoor use
Professional Installation Requirements
- Installation by a qualified tradesperson or experienced DIYer is recommended to ensure proper fastening and safety.
Applications
- Outdoor timber applications
- Hinges
- Fencing
- Gates
- Timber furniture assembly
Standards & Compliance
- AS/NZS 1390 – Hot-dip galvanized coatings on threaded fasteners
Environmental Benefits
- Hot dipped galvanised coating extends product life and reduces need for frequent replacements, minimizing waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Coach Bolts with Nuts 25 PCS are available for immediate purchase, ideal for outdoor timber and construction fastening applications.
