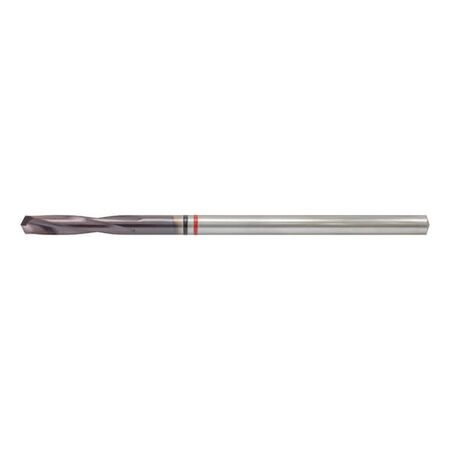

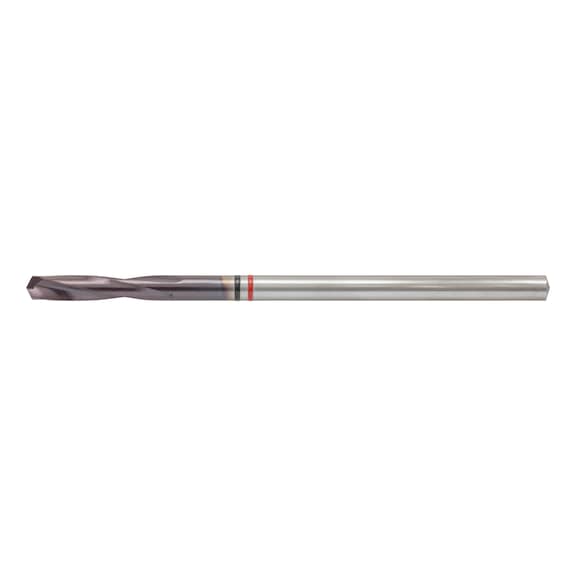

3.3mm Cobalt Drill Bit | Magma Coated | High-Speed Steel | 135° Tip Angle | by Wurth
The 3.3mm Cobalt Drill Bit is engineered for exceptional drilling stability and cutting force, making it ideal for machining hard materials like alloyed steels and titanium. With a special magma multi-layer coating and 8% cobalt alloy, this drill bit offers up to 9x longer service life and 50% faster cutting speed compared to uncoated options. Perfect for professional use in drills and milling machines, it ensures optimal centering and minimal effort during operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3.3mm Cobalt Drill Bit | Magma Coated | High-Speed Steel | 135° Tip Angle | by Wurth
Brand: Wurth
SKU: 618940330
Alternatively Known As: Cobalt Drill Bit, Magma Coated Drill Bit, High-Speed Steel Cobalt Drill, Hard Material Drill Bit, 3.3mm Metal Drill Bit
Technical Specifications
- Diameter: 3.3 mm
- Length: 65 mm
- Chip flute length: 18 mm
- Shank diameter: 3.3 mm
- Shank style: Cylindrical
- Surface coating: Magma multilayer coating
- Cutting material: HSCo8 (8% cobalt alloy)
- Type: Right-hand (RH)
- Tip angle: 135 degrees
- Suitable for tensile strength up to 1550 N/mm²
- Self-centring: Yes
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine, Milling/drill center
- Service life rating: 4 of 4 points
- Drilling speed rating: 3 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drills and cordless drills: 4 of 4 points
- Suitable for upright drilling machines: 4 of 4 points
- Suitable for milling-drilling centres: 3 of 4 points
- Dimensions (H x L x W): 65mm x 65mm x 3.3mm
- Weight: 0.1 kg
Key Features
- Exceptionally high drilling stability and cutting force with up to 9x longer service life and 50% faster cutting speed compared to uncoated drill bits
- Extra-high resistance to breakage and heat-resistant up to 800°C
- Special magma multi-layer coating combined with 8% cobalt alloy
- Optimal centring during work with minimal effort required to loosen and tighten the drill chuck
- 3-flat shank design from diameter 4 mm prevents spinning in the drill chuck and protects the chuck from damage
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- Suitable for use with drills, cordless screwdrivers, pedestal drilling machines, and milling/drill centers; professional handling recommended for optimal performance.
Applications
- Machining hard and tough materials including alloyed tempering steels, nitriding steels, tool steels, high-speed steels, cast iron, ductile iron, malleable cast iron, titanium and titanium alloys
- Suitable for drilling materials like Hardox, spring steels, bronze (short and long-chipping), and brass (short-chipping)
- Used in excavator shovels, lorry attachments, armour plating, snow ploughs, agricultural machinery
- Ideal for holes in conventional steels requiring long service life
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic from household waste
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; specific warranty details available upon request from Wurth.
Available Now
The Wurth Magma Multi-Layer Coated 3.3mm Cobalt Drill Bit is available for immediate purchase, ideal for machining hard and tough materials in industrial and manufacturing applications.
