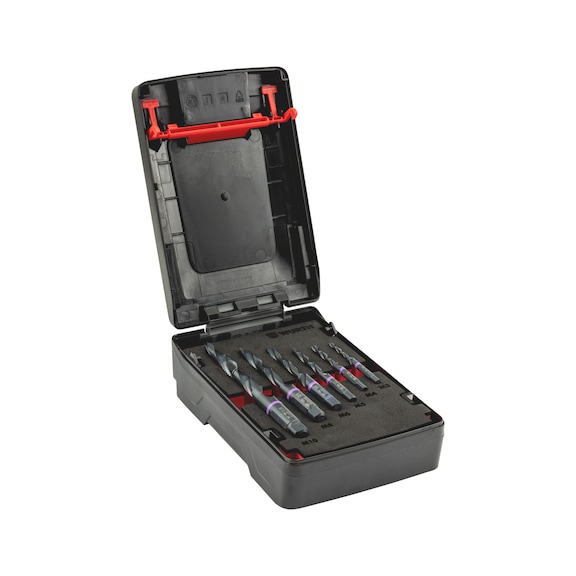

Combination Screw Tap | 3-in-1 Operation | SMART STEP Technology | Premium Quality | by Wurth
The Combination Screw Tap is designed for efficient drilling, thread cutting, and countersinking in one step, making it ideal for machining steel, stainless steel, titanium, and non-ferrous metals. With SMART STEP technology for optimal centering and a longer service life than conventional taps, this premium tool is perfect for professionals seeking precision and versatility in their work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Combination Screw Tap | 3-in-1 Operation | SMART STEP Technology | Premium Quality | by Wurth
Brand: Wurth
SKU: 658580006
Alternatively Known As: Combination screw tap, 3-in-1 screw tap, SMART STEP screw tap, Thread cutting tap, Countersinking tap
Technical Specifications
- Number of pieces in set: 6 PCS
- Material to be processed: Steel, Cast metal, Stainless steel, Titanium, Non-ferrous metal
- Quality: ZEBRA-Premium
- Hole type: Clearance hole up to 2xD
- Cutting material: HSCo
- Surface finish: Vaporised
- Suitable machine types: Cordless screwdrivers, Drill, Pedestal drilling machine
- Suitable for tensile strength up to 1200 N/mm²
- Thread type: Metric thread
- Service life rating: 4 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 4 of 4 points
- Cutting behaviour rating: 4 of 4 points
- Chip formation rating: 4 of 4 points
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Alloyed tempering steels, Nitriding steels, Tool steels, High-speed steels, Cast iron, Ductile iron, Malleable cast iron, White cast iron, Stainless steels (various types), Titanium and alloys, Spring steels, Aluminium and alloys, Plastics (thermoset and thermoplastic), Brass, Bronze, Copper
- Dimensions (H x L x W): 40mm x 160mm x 120mm
- Weight: 0.2 kg
Key Features
- 3 in 1 operation: drilling, thread cutting, and countersinking/deburring in a single step
- SMART STEP technology for optimal centring and high-precision circular holes
- Suitable for thicker workpieces with material thickness up to 2xD
- Compatible with almost all materials including steel, stainless steel, titanium, and non-ferrous metals
- Significantly longer service life compared to conventional combination screw taps
- True-to-the-gauge through hole thread according to ISO 2 (6H)
- Newly developed shank combining 3-flat and straight shank with square drive
- Sustainable packaging made from 100% PCR recycled plastic and fully recyclable
- Compact and practical ORSY system cassette with stackability and easy opening
Professional Installation Requirements
- Use by trained professionals or experienced machinists is recommended to ensure proper operation and safety. Adequate coolant and lubricant must be applied during use.
Applications
- Machining steel, cast metal, stainless steel, titanium, and non-ferrous metals
- Suitable for use with cordless screwdrivers, drills, and pedestal drilling machines
- Ideal for precise drilling, thread cutting, and countersinking/deburring in one operation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Sustainable product packaging made from 100% recycled plastic and fully recyclable materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Premium Combination Screw Tap with SMART STEP Technology is available for immediate purchase. Ideal for machining applications requiring efficient and precise thread cutting and drilling.
