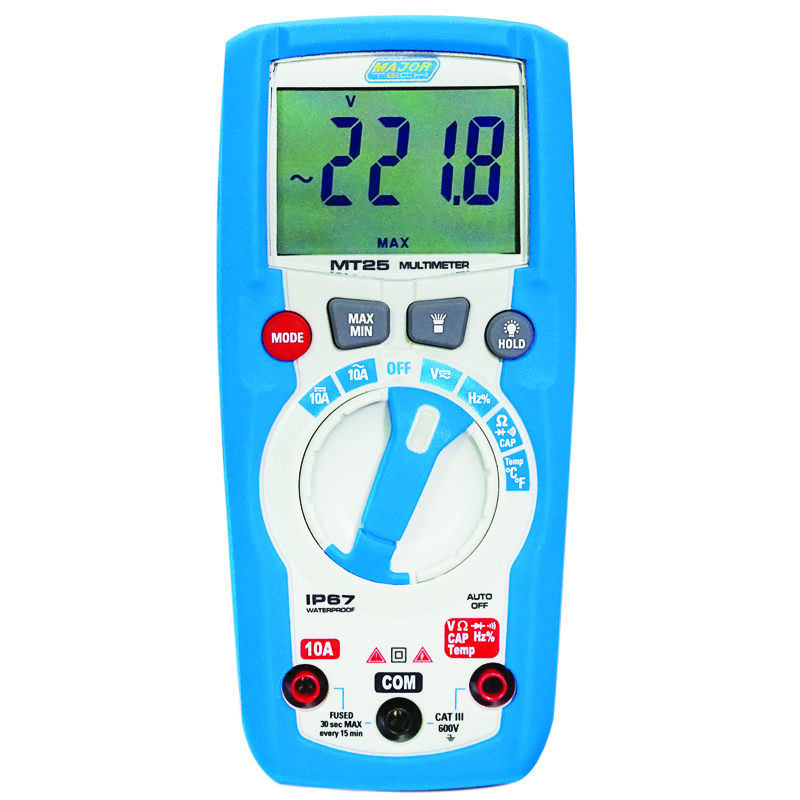

Compact Digital Multimeter | 600V AC Voltage | 10A DC Current | Backlit Display by Majortech
Compact digital multimeter with 600V AC voltage and 10A DC current capabilities—ideal for electrical testing and troubleshooting. Built for electricians and technicians, featuring a large backlit display and durable design for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact Digital Multimeter | 600V AC Voltage | 10A DC Current | Backlit Display by Majortech
Brand: Majortech
SKU: MT25
Alternatively Known As: Digital Multimeter, Handheld Multimeter, Electrical Tester, Voltage Meter, Current Meter, Capacitance Meter
Technical Specifications
- AC Voltage: 1V to 600V, Resolution: 1mV, Accuracy: ±(1.5% + 10 digits)
- DC Current: 1mA to 10A, Resolution: 1mA, Accuracy: ±(3.0% + 5 digits)
- AC Current: 1mA to 10A, Resolution: 1mA, Accuracy: ±(3.0% + 5 digits)
- Duty Cycle: 0.1% to 99.90%, Resolution: 0.10%, Accuracy: ±(1.2% + 2 digits)
- Resistance: 0.1Ω to 40.00MΩ, Resolution: 0.1Ω, Accuracy: ±(1.2% + 5 digits)
- Frequency: 0.001Hz to 9.999MHz, Resolution: 0.001Hz, Accuracy: ±(1.2% + 3 digits)
- Capacitance: 10pF to 4000μF, Resolution: 10pF, Accuracy: ±(1.2% + 5 digits)
- Temperature: -20°C to 760°C, Resolution: 0.1°C, Accuracy: ±(3.0% + 5°C)
- Dimensions (H x L x W): 140mm x 35mm x 70mm
- Weight: 0.3 kg
Key Features
- Compact handheld design with double moulded rubber housing for safety and durability
- Large 4000 count backlit display with 41 segment analogue bargraph
- Built-in LED flashlight for use in dimly lit areas
- Tilt stand for hands-free operation
- IEC 61010-1 CAT III 600V safety rating
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained personnel.
Applications
- Electrical testing and troubleshooting
- Industrial and specialist electrical measurements
- HVAC and temperature monitoring
- General electronics and electrical maintenance
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption
- Durable construction extends product lifespan, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech Compact Digital Multimeter MT25 is available now for immediate purchase. Ideal for industrial, specialist, and general electrical testing applications.
