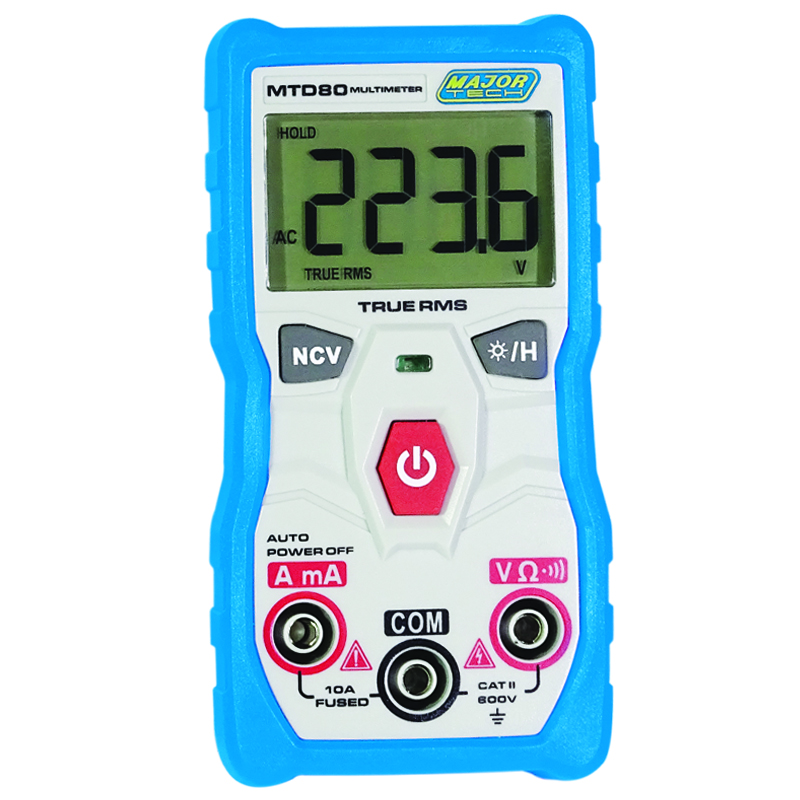

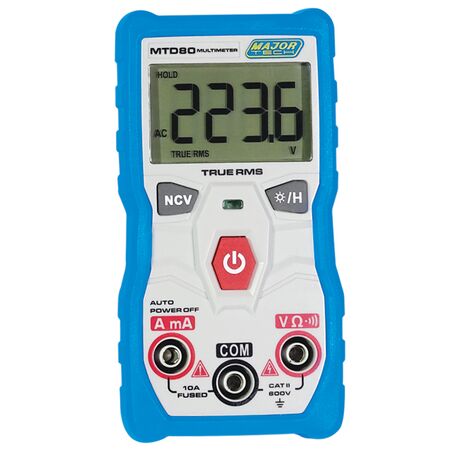

Compact True RMS Auto Ranging Multimeter | 4000 Count LCD | NCV Detector & Auto Power Off | Majortech
Compact true RMS auto ranging multimeter with a 4000 count LCD display and built-in NCV detector—ideal for electricians and DIY enthusiasts. Designed for accurate electrical testing, it features auto power off for battery conservation and a rubber holster for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact True RMS Auto Ranging Multimeter | 4000 Count LCD | NCV Detector & Auto Power Off | Majortech
Brand: Majortech
SKU: MTD80
Alternatively Known As: True RMS Multimeter, Auto Ranging Multimeter, Digital Multimeter, NCV Multimeter, Electrical Tester
Technical Specifications
- AC Voltage Range: 0.001mV - 750V, Resolution: 0.1mV, Accuracy: ±(1.0% + 3 digits)
- DC Current Range: 0.1mA - 10A, Resolution: 0.01mA, Accuracy: ±(2% + 4 digits)
- AC Current Range: 0.1mA - 10A, Resolution: 0.01mA, Accuracy: ±(1% + 3 digits)
- Duty Cycle Range: 1% - 99%, Resolution: 0.1%, Accuracy: ±(0.1% + 2 digits)
- Resistance Range: 0.001Ω - 40.00MΩ, Resolution: 0.01MΩ, Accuracy: ±(0.5% + 3 digits)
- Frequency Range: 99.99Hz - 9.999MHz, Resolution: 0.001MHz, Accuracy: ±(0.1% + 2 digits)
- Capacitance Range: 4.000nF - 200.0μF, Resolution: 0.1μF, Accuracy: ±(3.5% + 4 digits)
- Compliance: IEC 61010-1 CAT II 600V / CAT III 300V
- Dimensions (H x L x W): 140mm x 30mm x 70mm
- Weight: 0.3 kg
Key Features
- Compact design with 4000 count LCD backlit display
- True RMS measurement for accurate AC readings
- Auto-ranging Smart mode automatically identifies measurement type
- Built-in Non-Contact Voltage (NCV) detector with buzzer alert
- Rubber holster with built-in tilt stand for hands-free use
- Low battery indication and auto power off for convenience
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained users.
Applications
- Electricians for electrical circuit testing
- Electronic technicians for device diagnostics
- Alarm installers for system verification
- Students for educational purposes
- DIY users for home electrical projects
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto power off feature conserves battery life and reduces waste
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech Compact True RMS Auto Ranging Multimeter MTD80 is available now for immediate purchase. Ideal for electrical testing in residential, commercial, and educational settings.
