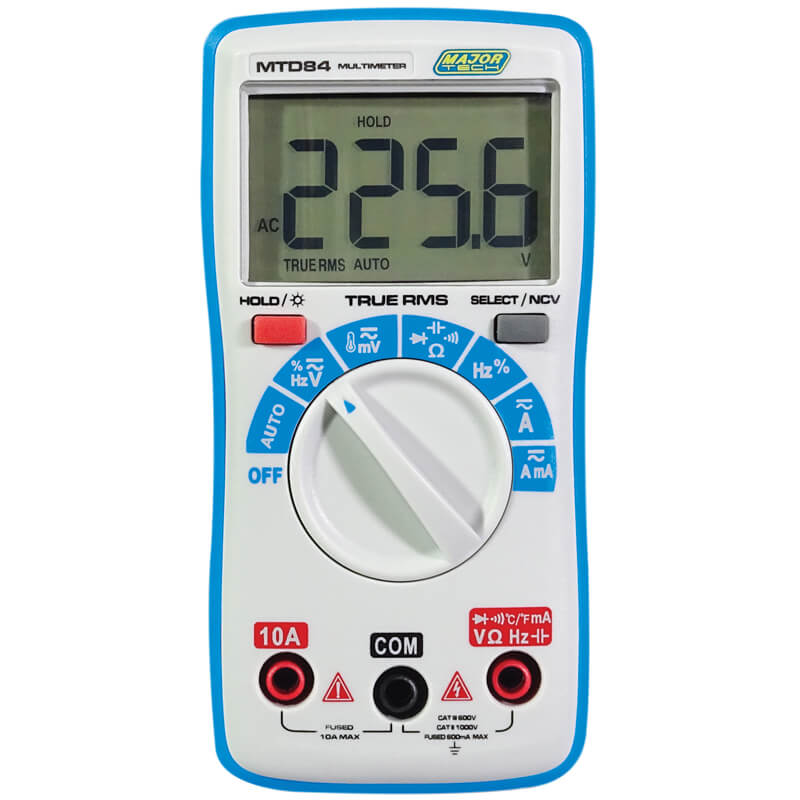

Compact True RMS Auto Ranging Multimeter | 6000 Count LCD | NCV Detector & Auto Power Off | Majortech
Compact true RMS auto ranging multimeter with a 6000 count LCD display and built-in NCV detector—ideal for electricians and DIY enthusiasts. Designed for accurate electrical measurements, it features auto power off to conserve battery life and a tilt stand for hands-free operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact True RMS Auto Ranging Multimeter | 6000 Count LCD | NCV Detector & Auto Power Off | Majortech
Brand: Majortech
SKU: MTD84
Alternatively Known As: True RMS Multimeter, Auto Ranging Multimeter, Digital Multimeter, NCV Multimeter, Electrical Tester
Technical Specifications
- AC Voltage Range: 0.01mV to 750V, Resolution: 0.01mV, Accuracy: ±(1.0% + 3 digits)
- DC Current Range: 0.01mV to 750V, Resolution: 0.001A, Accuracy: ±(1.2% + 3 digits)
- AC Current Range: 0.01mA to 10A, Resolution: 0.0001A, Accuracy: ±(1.5% + 3 digits)
- Duty Cycle Range: 1% to 99%, Resolution: 0.1%, Accuracy: ±(0.1% + 2 digits)
- Resistance Range: 0.01mA to 10A, Resolution: 0.001MΩ, Accuracy: ±(0.5% + 3 digits)
- Frequency Range: 0.01mA to 10A, Resolution: 0.01Hz, Accuracy: ±(0.1% + 2 digits)
- Capacitance Range: 0.01mA to 10A, Resolution: 0.001nF, Accuracy: ±(2.0% + 5 digits)
- Temperature Range: -20 to 1000°C, Resolution: 1°C, Accuracy: ±(2.5% + 5 digits)
- Compliance: IEC 61010-1 CAT III 600V
- Dimensions (H x L x W): 140mm x 35mm x 70mm
- Weight: 0.3 kg
Key Features
- Compact design with 6000 count LCD backlit display
- True RMS measurement for accurate AC readings
- Auto-ranging with Smart AUTO mode for automatic function detection
- Built-in Non-Contact Voltage (NCV) detector with visual and audible alerts
- Built-in tilt stand for hands-free operation
- Low battery indication and auto power off for battery conservation
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained users.
Applications
- Electricians for electrical measurements and troubleshooting
- Electronic technicians for circuit testing and diagnostics
- Students for educational and practical electronics work
- DIY users for home electrical and electronic projects
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto power off feature reduces battery waste and energy consumption
- Durable design extends product life reducing electronic waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech Compact True RMS Auto Ranging Multimeter MTD84 is available now for immediate purchase. Ideal for electrical testing and measurement in industrial, educational, and DIY applications.
