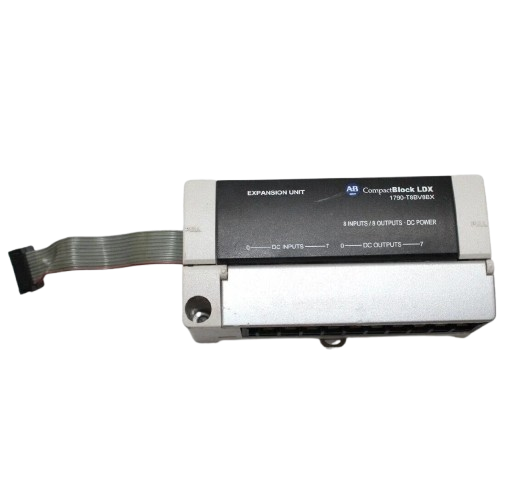

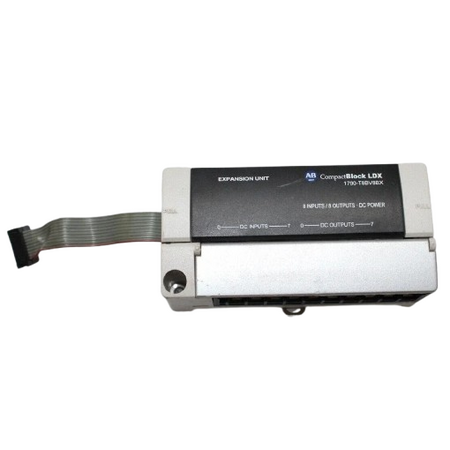

COMPACTBLOCK LDX I O DNET Base 8 Digital 24V DC Allen-Bradley

BRAND: Allen-Bradley
SKU: 1790DT8BV8B
$1,753.70 List price: $2,185.40
+ −
30 Days Return Electricians Unlock Trade Access
COMPACTBLOCK LDX I O DNET Base 8 Digital Inputs & Outputs 24V DC Source Screw Terminal from Allen-Bradley.

Alternatively Known As: COMPACTBLOCK LDX I/O Module, DeviceNet I/O Base, 8DI/8DO I/O Module

Technical Specifications
  • Digital Inputs: 8
  • Digital Outputs: 8
  • Voltage: 24V DC source
  • Connection Type: Screw terminals
  • Communication Protocol: DeviceNet
  • Mounting: DIN rail compatible
  • Operating Temperature: 0°C to 60°C
  • Dimensions (H x L x W): 50mm x 120mm x 100mm
  • Weight: 1.2 kg
Key Features
  • 8 digital inputs and 8 digital outputs
  • 24V DC source screw terminal connections
  • Compact and modular design for easy integration
  • Supports DeviceNet communication protocol
Professional Installation Requirements
  • Installation by a qualified electrician or automation technician is required to ensure proper wiring and DeviceNet network integration.
Applications
  • Industrial automation control systems
  • Manufacturing process control
  • Factory assembly lines
  • Machine monitoring and control
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces wiring complexity and material waste through modular design
  • Supports energy-efficient industrial automation systems
Warranty Information

Standard manufacturer warranty of 1 year against defects.

Available Now

The Allen-Bradley COMPACTBLOCK LDX I/O DNET Base 8DI/8DO 24V DC Source Screw module is available for immediate purchase, ideal for industrial automation and control applications.
