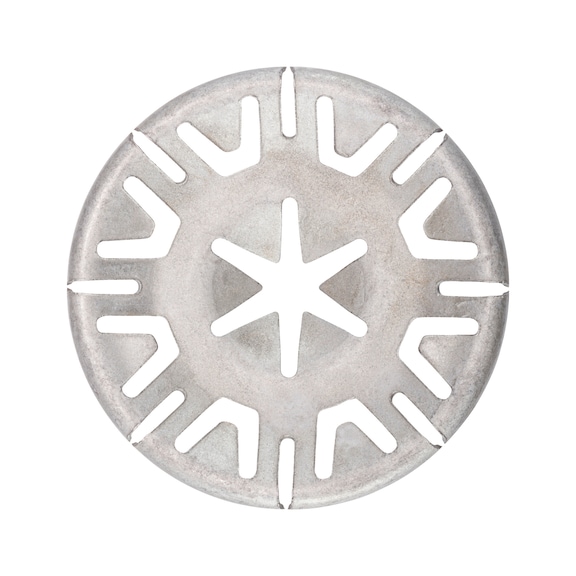

Concave Star Shaped Clamping Ring | Spring Steel CK 67 | Zinc Coated | @Pack of 10 | by Wurth
The Concave Star Shaped Clamping Ring is crafted from durable Spring Steel CK 67 and features a corrosion-resistant zinc coating. Designed for quick and easy hand mounting, this clamping ring is perfect for mechanical fastening of rods, shafts, and threaded stud bolts in industrial and automotive applications. Its secure attachment ensures a neat finish on assemblies, making it an essential component for maintenance and repair tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Concave Star Shaped Clamping Ring | Spring Steel CK 67 | Zinc Coated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 501101624
Alternatively Known As: Concave Clamping Ring, Star Shape Retaining Ring, Spring Steel Clamping Ring
Technical Specifications
- Material: Spring steel CK 67
- Surface finish: Flake zinc silver
- Diameter (A): 26.50 mm
- Height (B): 5.30 mm
- Material thickness: 0.40 mm
- Suitable for screw diameter: 5.0 mm
- Min./max. drill hole diameter: 5.00 mm
- Dimensions (H x L x W): 5.3mm x 26.5mm x 26.5mm
- Weight: 0.02 kg
Key Features
- Concave star-shaped clamping ring for secure attachment
- Quick and easy to mount by hand
- Achieves a neat finish on assemblies
Professional Installation Requirements
- No special professional installation required; designed for quick and easy hand mounting.
Applications
- Mechanical fastening of rods, shafts, and threaded stud bolts
- Industrial and automotive assembly requiring secure clamping
- Maintenance and repair tasks involving spring steel components
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Zinc flake coating provides corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Clamping Ring with Concave Star Shape Clear Frame Channel 10 PCS is available for immediate purchase, ideal for mechanical fastening and assembly applications.
