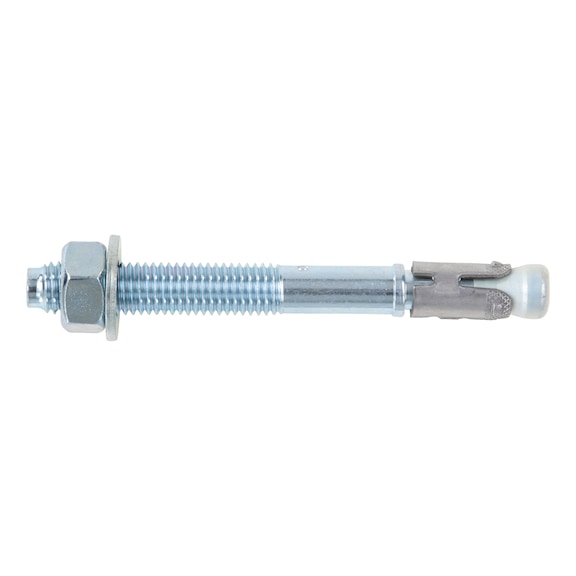

Concrete Anchor Bolt M10 | Zinc Plated Steel | High Load Capacity | @Pack of 50 | by Wurth
Concrete Anchor Bolt M10 is designed for high load applications in both cracked and non-cracked concrete. Made from durable zinc-plated steel, it offers immediate load-bearing capacity and time-saving installation. Ideal for heavy steel structures, fence systems, and post support brackets, this anchor bolt ensures reliable performance with seismic ratings and fire resistance compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 95 mm
- Attachment height (t fix): 15 mm
- Max. attachment height reduced (t fix, red): 35 mm
- Effective anchoring depth (h ef): 60 mm
- Effective anchoring depth reduced (h ef, red): 40 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Drill hole depth (h 1): 75 mm
- Drill hole depth reduced (h 1, red): 55 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring (T inst): 25 Nm
- Through-hole in the component to be connected (d f): 12 mm
- Approval: ETA-99/0011
- Fire resistance: F30, F60, F90, F120 according to DIN 4102-2
- Dimensions (H x L x W): 95mm x 95mm x 17mm
- Weight: 0.2 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for faster installation
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2
- Fire resistance R30, R60, R90, R120 included in ETA-99/0011
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines and local building codes to ensure safety and compliance.
Applications
- Heavy steel structures
- Fence systems
- Post support brackets
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
The Wurth Fixanchor W FAZ S ANC W FAZ S A2K M10X95 Zinc Plated Steel Anchor Bolt is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
