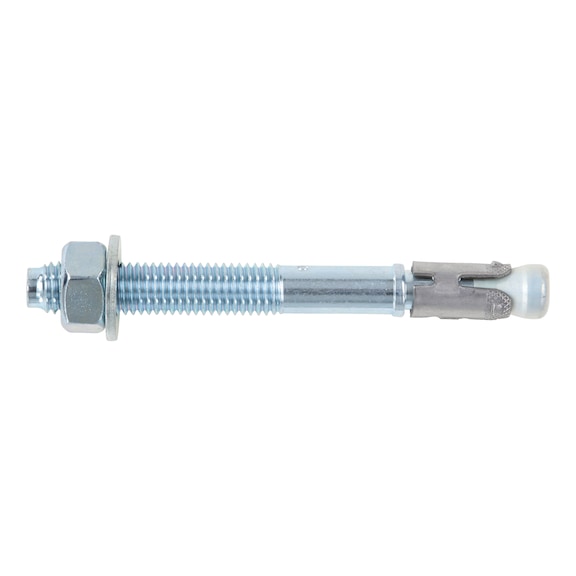

Concrete Anchor Bolt M10 | Zinc-Plated Steel | High Load Capacity | @Pack of 50 | by Wurth
Concrete Anchor Bolt M10 is designed for high load applications, featuring a zinc-plated steel construction for enhanced corrosion resistance. Ideal for heavy steel structures, fence systems, and post support brackets, this anchor bolt offers immediate load-bearing capacity with no waiting times, ensuring a time-saving installation process for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 100 mm
- Attachment height (t fix): 20 mm
- Max. attachment height reduced (t fix, red): 40 mm
- Effective anchoring depth (h ef): 60 mm
- Effective anchoring depth reduced (h ef, red): 40 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Drill hole depth (h 1): 75 mm
- Drill hole depth reduced (h 1, red): 55 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring (T inst): 25 Nm
- Through-hole in the component to be connected (d f): 12 mm
- Approval: ETA-99/0011
- Fire resistance: R30, R60, R90, R120 (M8-M16) per ETA-99/0011
- Dimensions (H x L x W): 100mm x 100mm x 17mm
- Weight: 0.2 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for time-saving
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2:1977-09
- Fire resistance R30, R60, R90, R120 included in ETA-99/0011
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer instructions and relevant Australian standards for anchoring in concrete.
Applications

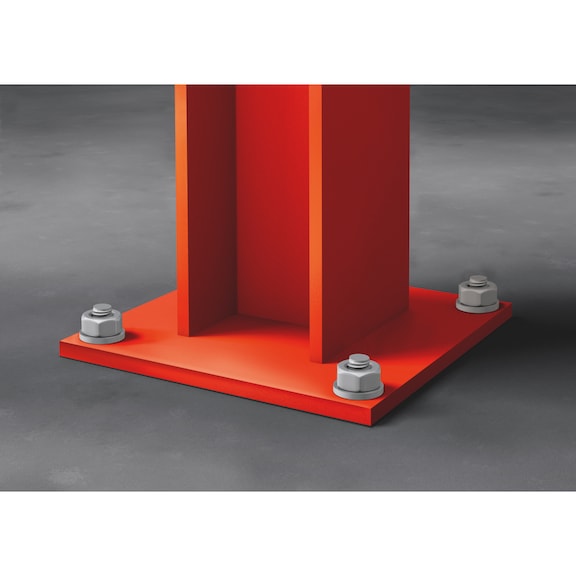

- Heavy steel structures

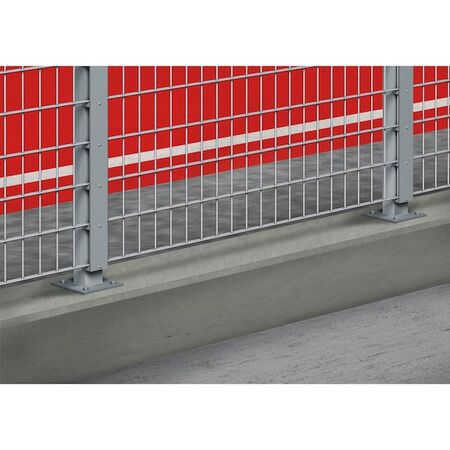

- Fence systems
- Post support brackets
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
The Wurth Fixanchor W FAZ S ANC W FAZ S A2K M10X100 is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
