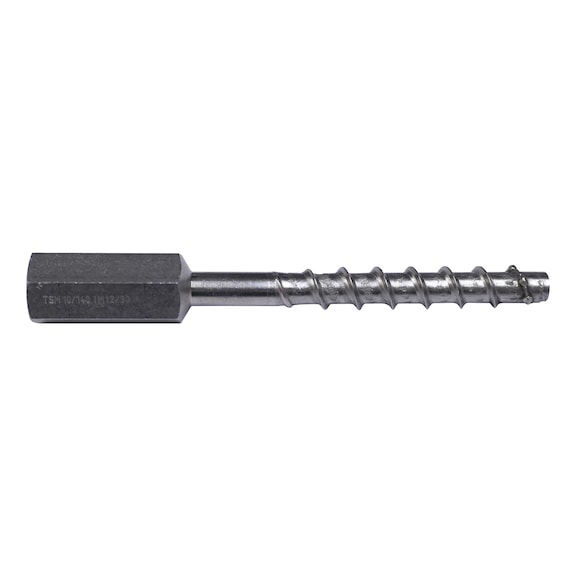

Concrete Screw with Female Thread | M12 x 30 | High Load Capacity | Stainless Steel A4 | @Pack of 10 | by Wurth
Concrete screw with female thread, M12 x 30, is designed for high load capacity applications. Ideal for mounting railings, anchor plates, and general concrete fastening, this screw offers efficient installation with no waiting time for load-bearing. Made from durable stainless steel A4, it ensures long service life and minimal environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor size: 10 mm
- Thread diameter: 10 mm
- Anchor length: 105 mm
- Head type: Hexagon head
- Connection thread: M12 x 30
- Material: Stainless steel A4
- Surface: Plain
- External drive: WS19
- Nominal drill-bit diameter: 10 mm
- Drill hole depths: 65 mm, 85 mm, 95 mm
- Embedding depths: 55 mm, 75 mm, 85 mm
- Attachment heights: 59.5 mm, 39.5 mm, 29.5 mm
- Through-hole in component: 14 mm
- Dimensions (H x L x W): 105mm x 105mm x 19mm
- Weight: 0.15 kg
Key Features
- Highest load capacities and efficient mounting
- Extremely flexible to use with multiple anchoring depths and a large variety of types
- Fastening can be adjusted up to twice after installation for alignment
- High load-bearing capacities with virtually no expansion effect
- Minimal axis and edge distances can be maintained
- Very quick and easy to install with no installation torque required
- Immediate load-bearing capacity with no waiting time
Professional Installation Requirements
- Professional installation by qualified personnel is recommended. Use suitable tangential impact screwdriver from size 8 and above for installation.
Applications
- Suspension of fittings with connecting thread
- Mounting railings or anchor plates
- General concrete fastening requiring high load capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel A4 for long service life reducing replacement waste
- Efficient installation reduces energy and resource use on site
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Concrete Screw with Female Thread M12x30 10x105 is available for immediate purchase. Ideal for high load concrete fastening applications in construction and industrial settings.
